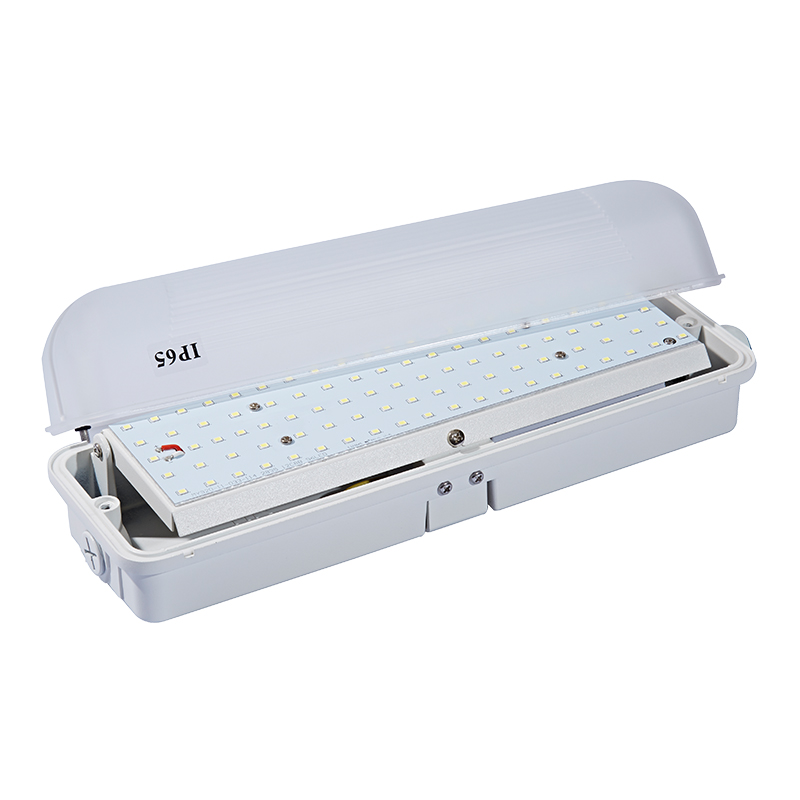

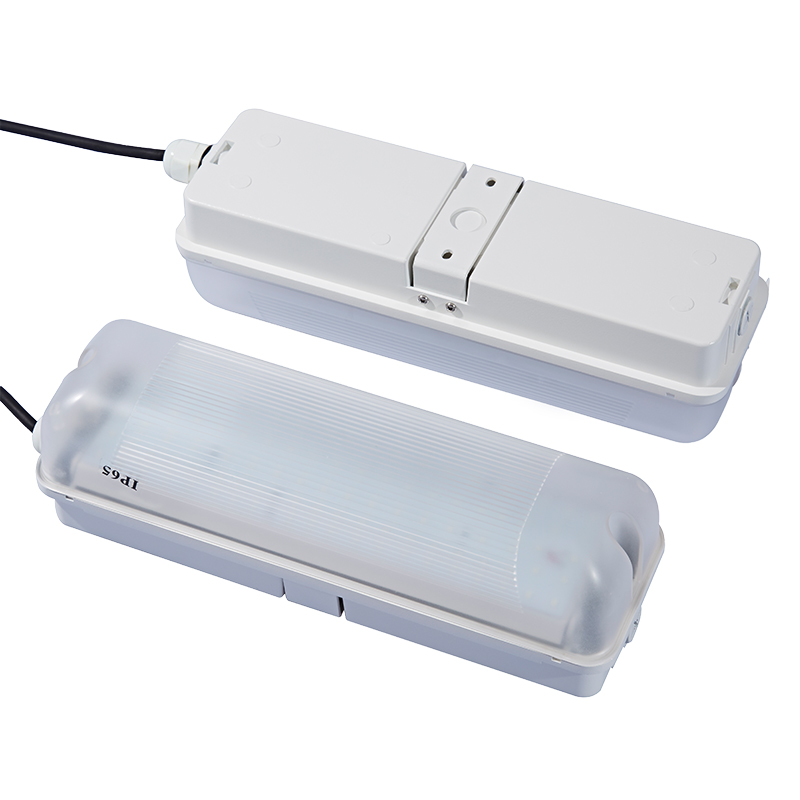

Ecobulk Q3 Self-Contained LED Emergency IP65 Bulkhead, a state-of-the-art emergency lighting solution designed to meet the highest standards of safety and durability.
This product seamlessly combines advanced technology with robust construction, making it ideal for a wide range of environments.
With an IK10 rating, this bulkhead offers exceptional resistance to impact, ensuring long-lasting performance even in demanding conditions.
The IP65 rating guarantees superior protection against water and dust, making it suitable for both indoor and outdoor applications.
Equipped with a self-test feature, this bulkhead allows for automatic and periodic testing, ensuring consistent and reliable operation during emergencies.
Certified Safety and Compliance: This product is verified by CB, CE, HK Safety, and RoHS standards, providing assurance of its safety, reliability, and environmental compliance.
Crafted with an AD-12 die-cast aluminum body, this bulkhead combines strength and durability with a robust and modern design and high quality construction.
Integrated Emergency Solution: Featuring a one-fits-all driver and converter integrated emergency solution, this bulkhead simplifies installation and enhances operational efficiency.
Ideal for various settings, our Self-Contained LED Emergency IP65 Bulkhead is the perfect choice for those seeking a high-quality, reliable, and versatile outdoor emergency lighting solution.
Relevant standard
EN55015
EN61347
EN60598-2-22
IEC62133/EN62620
UN38.3(related to Lithium Iron Phosphate Battery)
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | Q3S12W/G | Q3S18W/G | Q3S24W/G |
| Description | IP65 Robust Industrial AL Base LED Emergency Bulkhead | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | ||
| Installation | 4×1 .0mm2 cable input | |||
| Output | Light Source | High performance Bidgelux LEDs , 100,000 hours | ||
| Luminous Flux | 1200lm ( M ) , 300/400lm ( E ) | |||
| Power Consumption | 8W( M ) , 2/4W( E ) | |||
| Emergency Duration | > 180 minutes | |||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | ||
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | ||
| Testing Facility | Self test | |||
| Indicators | Battery charger green LED , Function failure through red LED. | |||
| Physical | Material | Die-cast Aluminium ,850℃ Flame-retardant polycarbonate | ||
| Mounting | Surface mounted – wall or ceiling | |||
| Finishing Color | White or Grey | |||
| Dimensions LxWxH | 323mm x 100mm x 97mm | |||
| IP Rating | IP65 | |||
| Weight | 0 .93kg | |||
| Warranty | 5 years on product , 4 years on battery | |||
| Environment | Operating Temperature | 0° to 50° C | ||
| Relative Humidity | 0 to 95% | |||
| Compliance | Standards | CE/UKCA/ HK Safety , lEC 60598-2-1 , IEC 60598-2-2 , EN55015 , CAP 106B | ||
| Electric class ( 1 , 2 , 3) | 1 | |||
| Accessories | Replaceable Battery | P/ N:2116-03 Bodofor® 18650 LiFe PO4 6 .4V 1600mA 03 | ||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

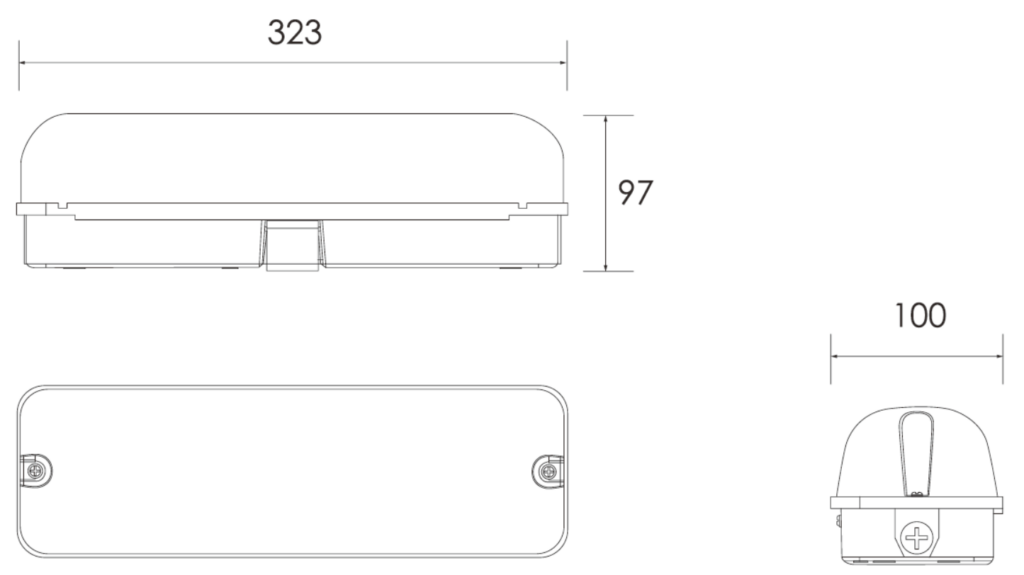

Dimensions(Unit:mm)
