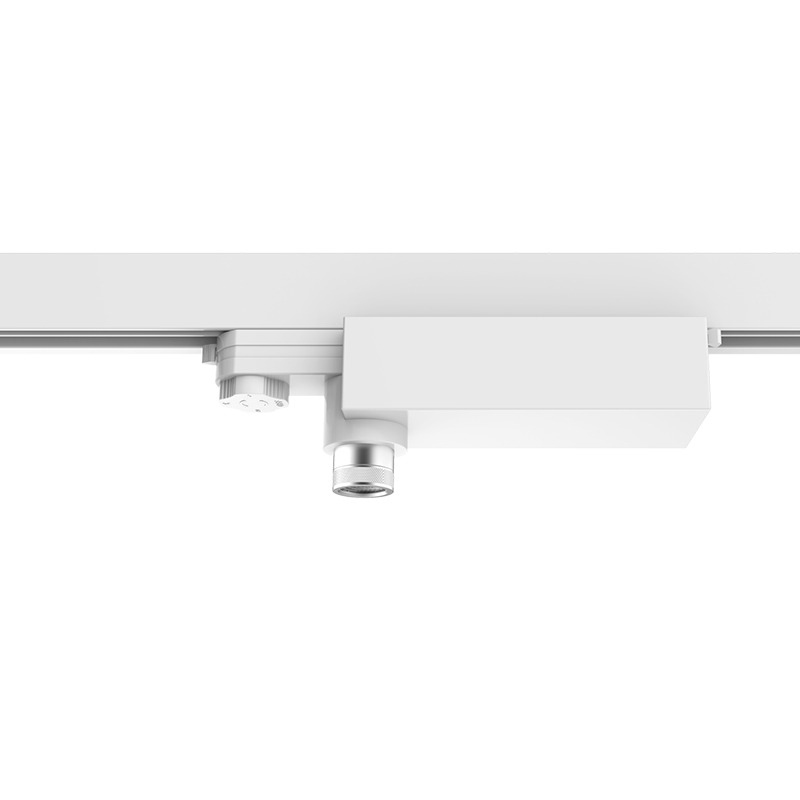

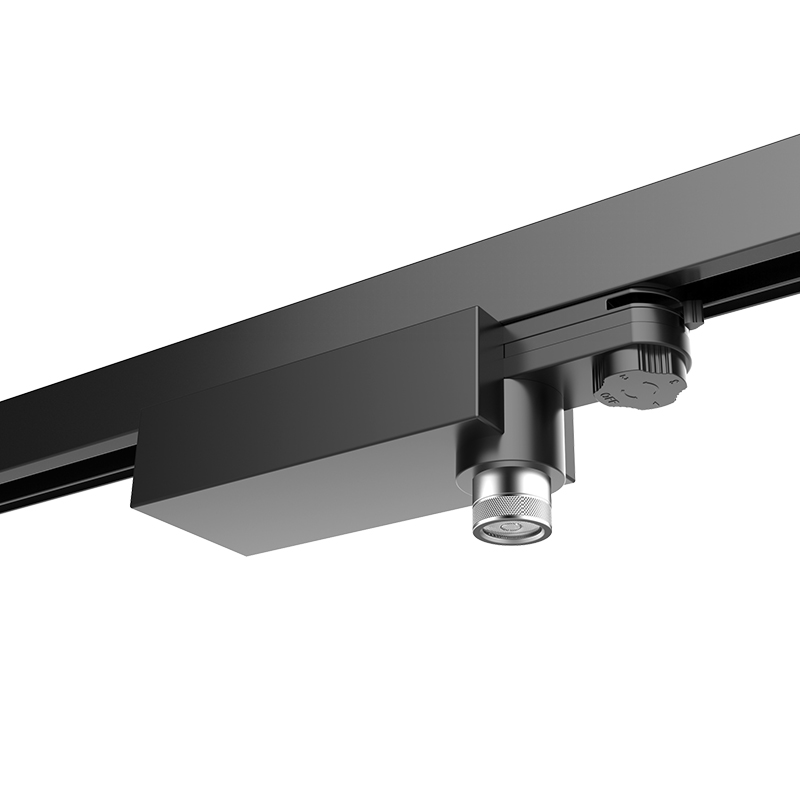

Tracklite T4 is a innovative Track-Mounted LED Emergency Light, designed to offer superior safety, efficiency, and ease of installation. Perfect for various environments, this state-of-the-art emergency lighting solution ensures reliable performance when it matters most.
It complies with EN1838 and AS/NZS2293.3 standards, ensuring it meets the highest safety and performance requirements for emergency lighting.
With an impressive output of 268lm Or 400lm, this light achieves up to D50 Or D63 emergency classification, providing excellent illumination during emergencies.
Equipped with super bright LUXEON 5050 LEDs and the Kinomo™ lens, this light delivers exceptional brightness and clarity for enhanced visibility.

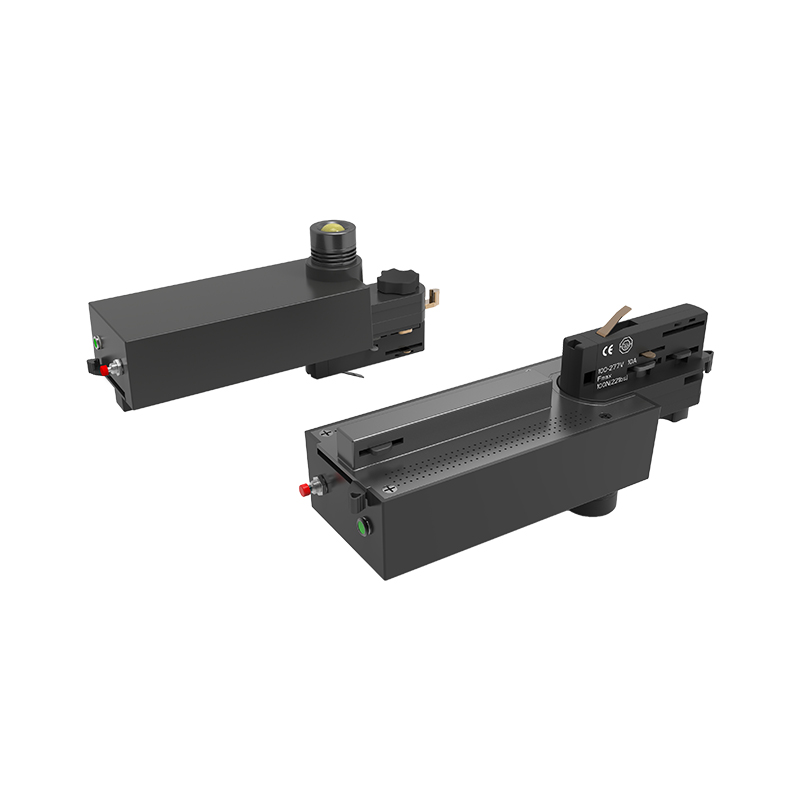

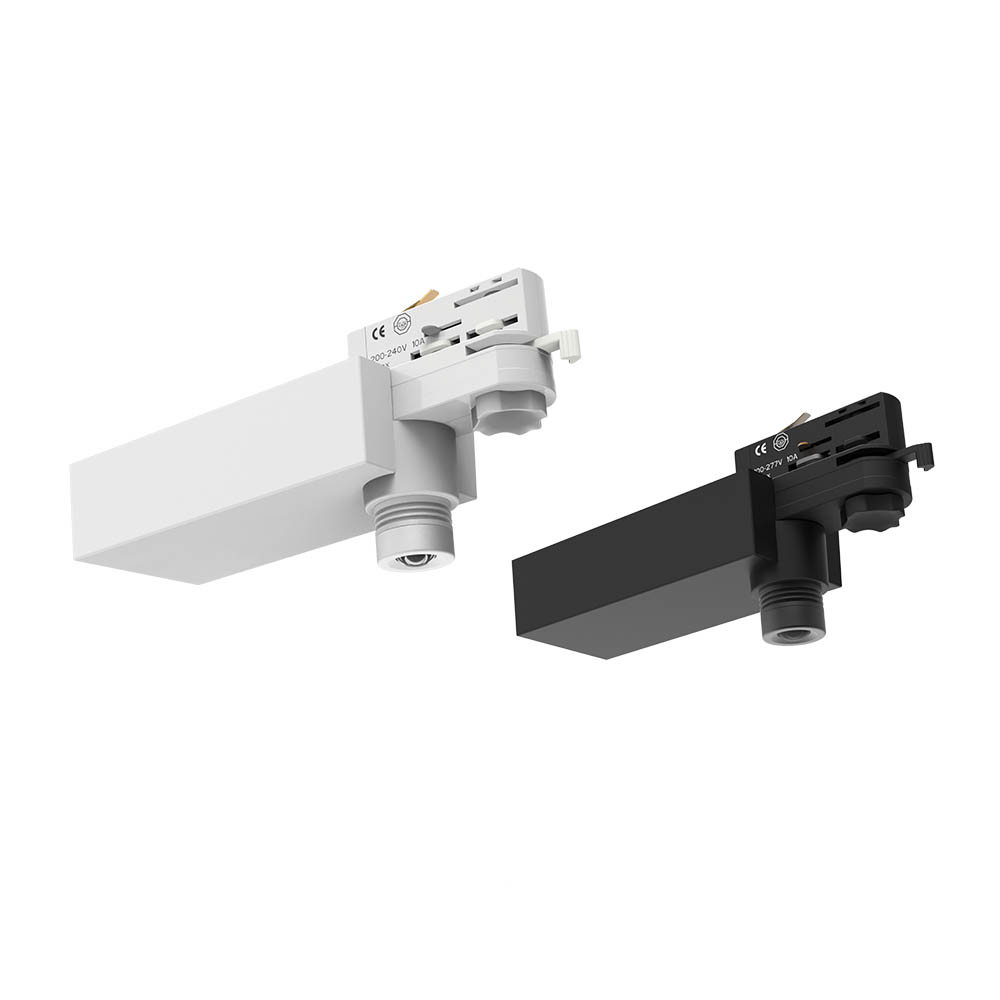

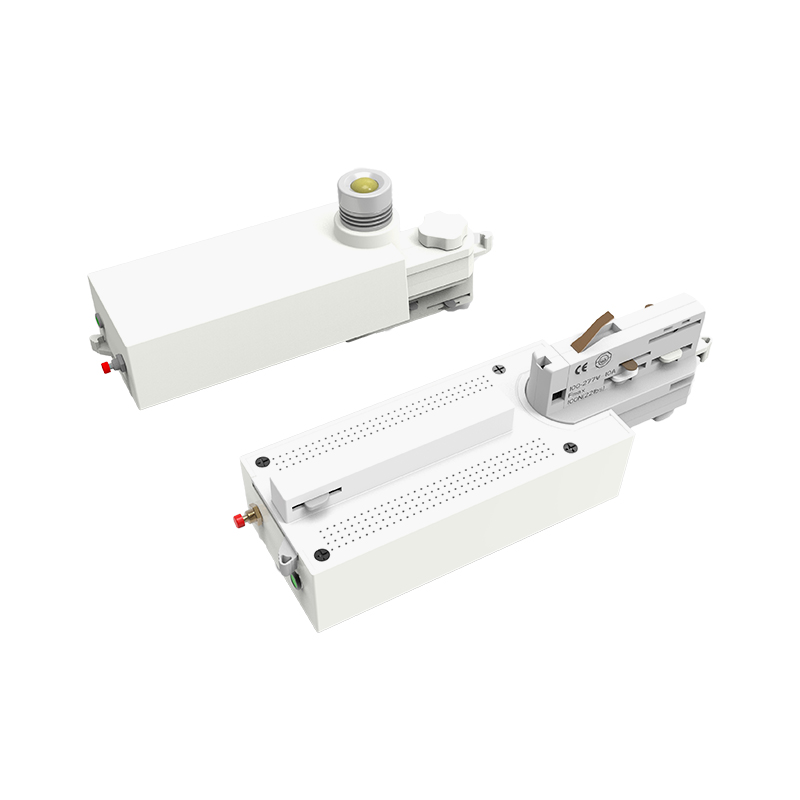

Available in two configurations, this emergency light offers both manual test and self-test options, black color and white color options, ensuring consistent and reliable operation and easy maintenance.
Designed for effortless installation, this emergency light is compatible with existing 4-wire (3-phase) tracks, minimizing installation time and maintenance costs.
Ideal for a wide range of applications, our Track-Mountable LED Emergency Light is the perfect solution for those seeking a high-quality, reliable, and easily installable emergency lighting system. Ensure safety and peace of mind with this advanced lighting solution.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | T4M23W/ B | T4S23W/ B | T4M33W/ B | T4S33W/ B |
| Description | Non-Maintained Self-contained Track Mounted LED Emergency Light | ||||
| Working | Mode of Operation | Non-Maintained | |||
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | |||
| Installation | Track-mounted on 3-Phase 4 Wires Track System | ||||
| Output | Light Source | Bridgelux SMD 1X5W | |||
| Luminous Flux | 268lm±5% | 268lm±5% | 400lm±5% | 400lm±5% | |
| PowerConsumption | 2 .0W(Standy ) , 1 . 7W( Emergency) | 3 .0W(Standy ) , 2 .4W( Emergency) | |||
| Emergency Duration | > 180 minutes | ||||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | |||
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |||
| Testing Facility | Manual test | Self test | Manual test | Self test | |
| Indicators | Battery charger green LED , Function failure through red LED. | ||||
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate | |||

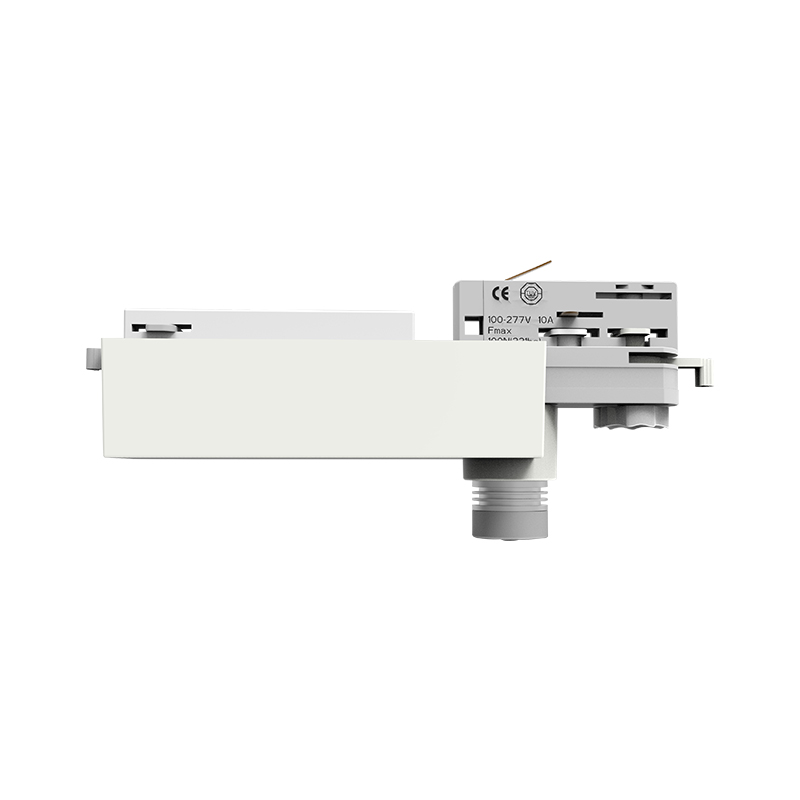

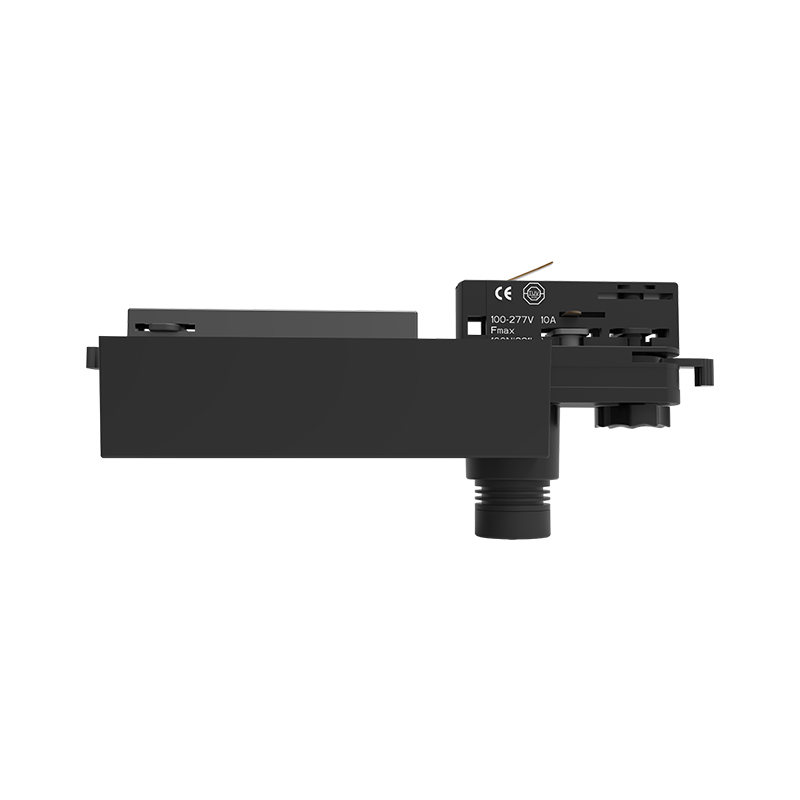

| Finishing Color | White OR Black | ||||
| Dimensions LxWxH | 230mm x 70mm x 100mm | ||||
| IP Rating | IP20 | ||||
| Weight | 365g | ||||
| Warranty | 5 years on product , 4 years on battery | ||||
| Environment | Operating Temperature | 0° to 50° C | |||
| Relative Humidity | 0 to 95% | ||||
| Compliance | Standards | CE/UKCA/ RCM , IEC 60598-1 , IEC 60598-2-2 , AS/NZS 2293 .3 | |||
| AS/NZS 2293 Classification | C0 D50 , C90 D50 | C0 D63 , C90 D63 | |||
| Accessories | Replaceable Battery | P/ N : 1 134-02 Bodofor® 26650 LiFe PO4 3 .2V 3400mA 02 | |||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

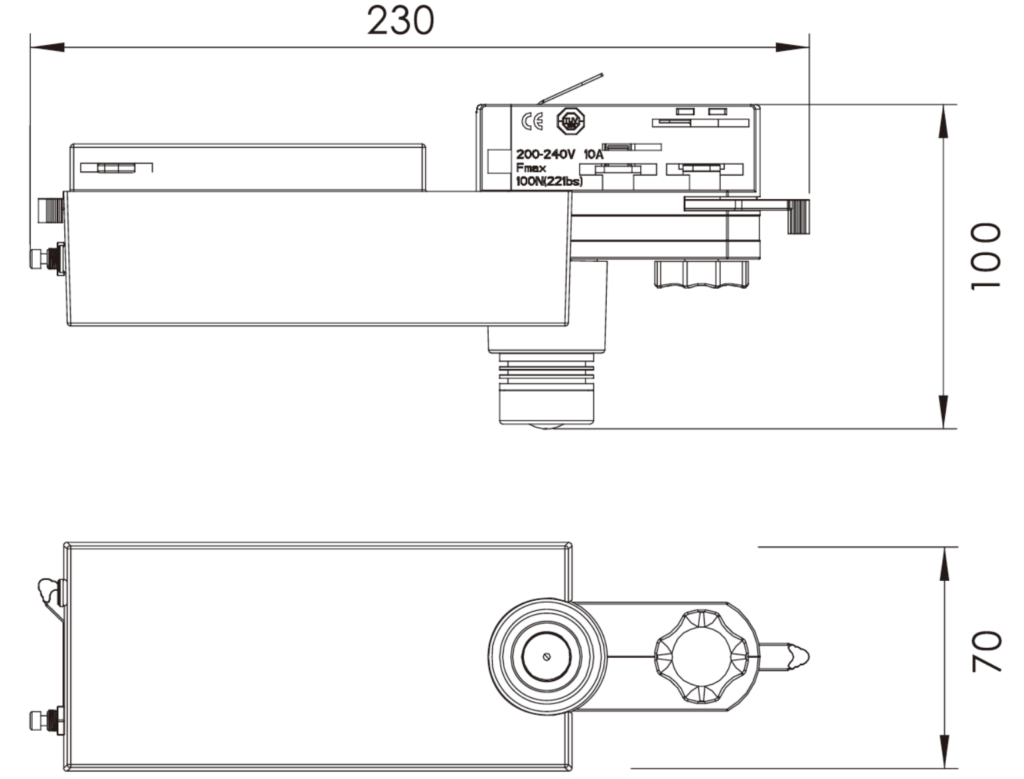

Dimensions(Unit:mm)
