Introducing the Trilamp A16 Series, a versatile lighting solution designed to meet your diverse needs. With its innovative End-End linkable quick connector, this series is the ideal choice for extruded waterproof batten lighting, offering significant advantages in both installation and maintenance cost savings.

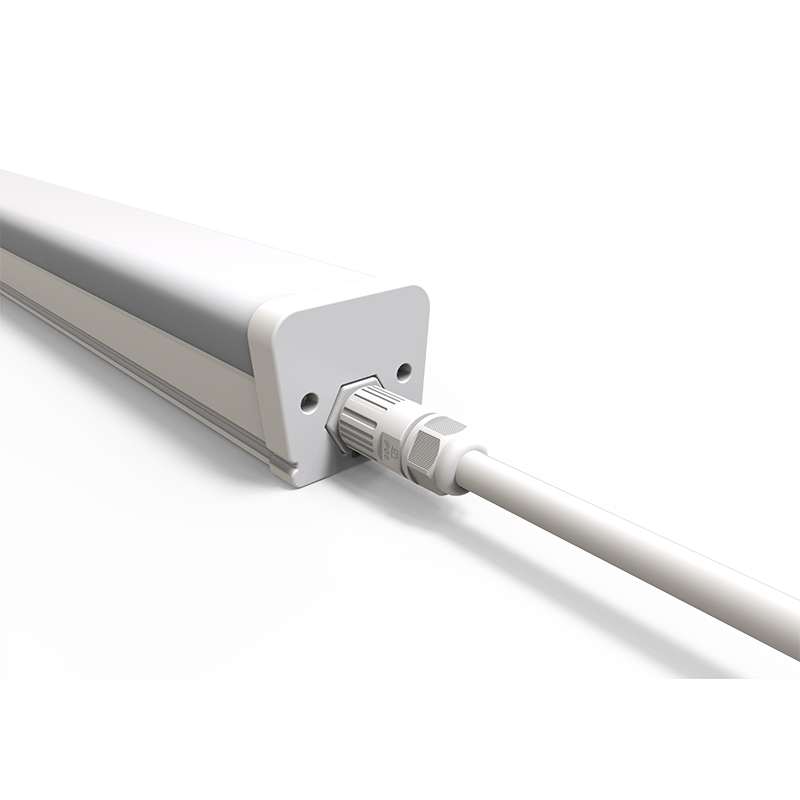

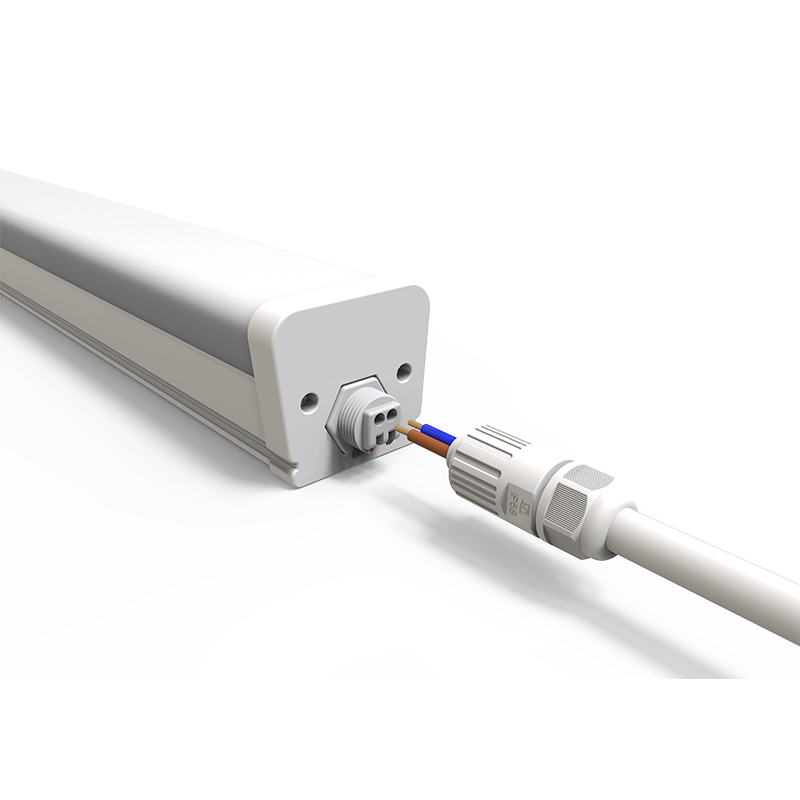

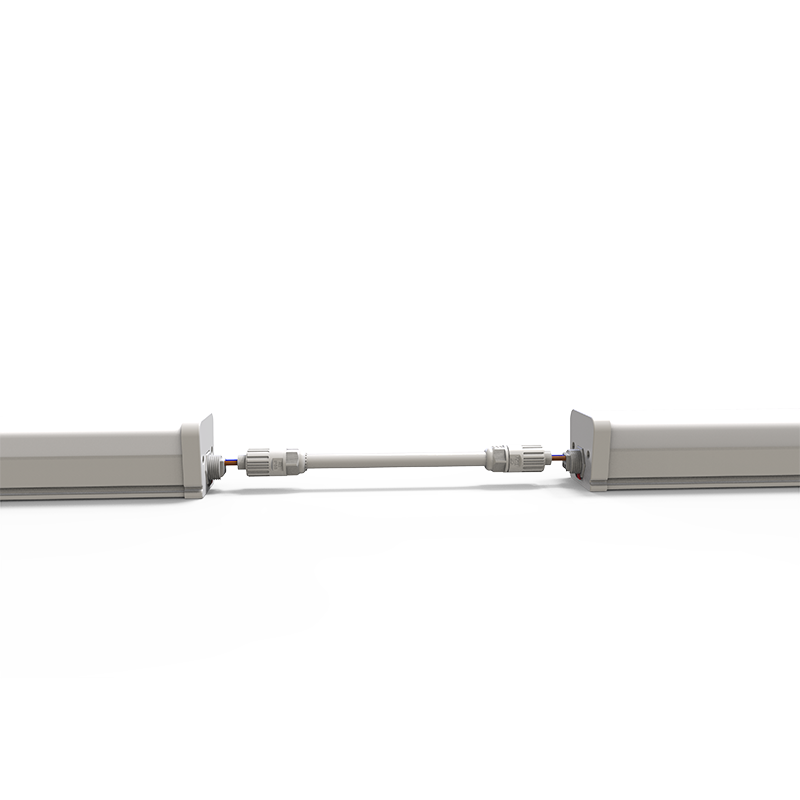

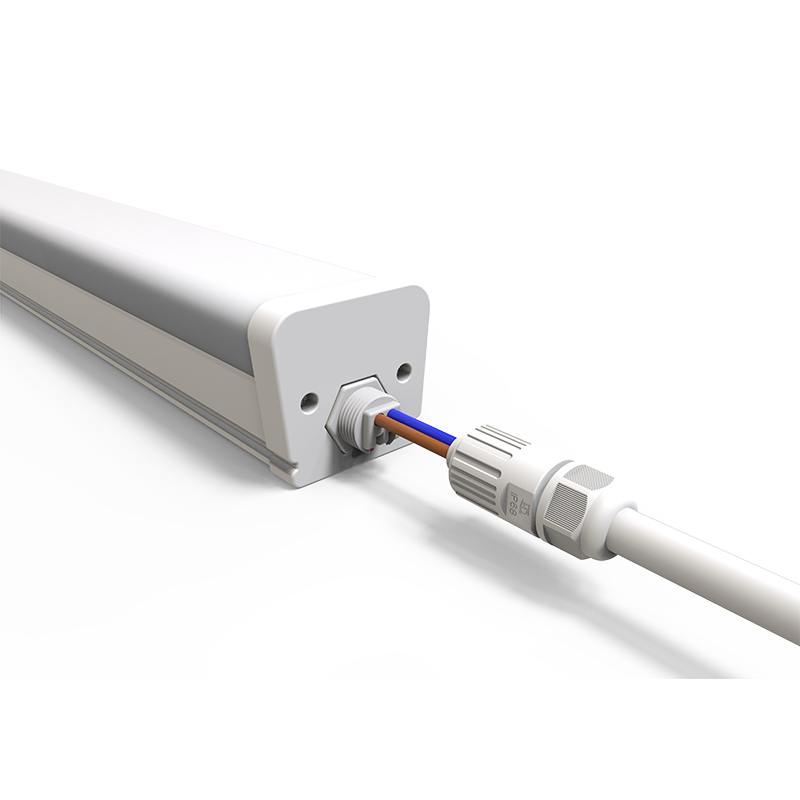

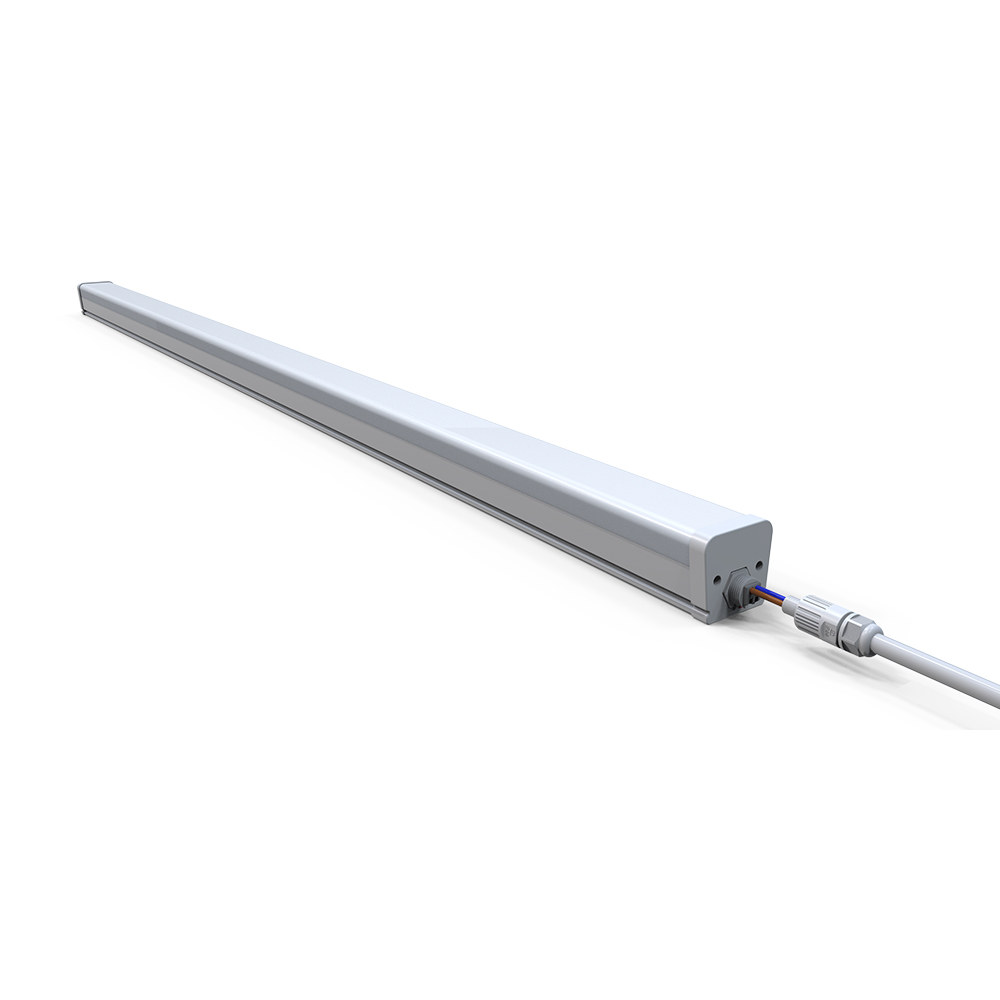

Linkable Quick Connector: The two-two linkable quick connector simplifies installation, reducing both upfront and long-term maintenance costs.

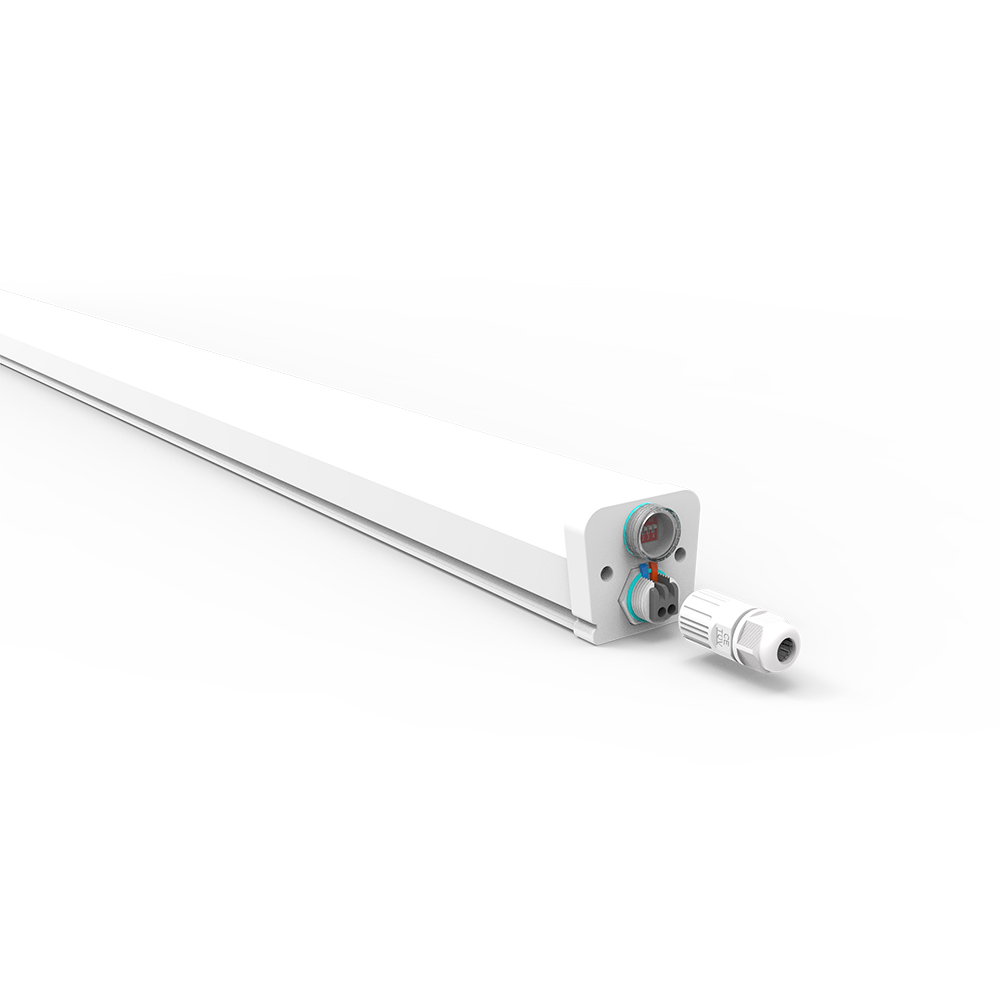

Customization Options: Choose from various options, including the 5.8G microwave sensor version, external tri-colors (3000K-4000K-5700K), and switchable power settings that can be adjusted via DIP switches without the need to open the lamp cover.
Efficient Design: The fixture body, measuring 57x62mm, maximizes container space efficiency, allowing up to 10,000 units per 40HQ container.
High-Performance Lighting: The Trilamp A16 Series is equipped with long-life, high-efficacy 2835R LEDs and a reliable LED driver for consistent performance. It operates at 220-240V and is flicker-free for enhanced versatility. You also have the option for 0/1-10V continuous dimming, making it ideal for use with controls and sensors.
Versatile Applications: This series is a versatile lighting solution suitable for a wide range of applications, including parking garages, corridors, hallways, stairwells, offices, closets, storage rooms, warehouses, manufacturing facilities, and spaces that require energy demand reduction and high-quality lighting.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | A16-2FT18-MMK-EL | A16-4FT36-MMK-EL | A16-5FT54-MMK-EL |
| Description | Tool-free & End to End Fast Connection IP65&IK08 Linkable LED Waterproof Batten | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | ||
| Wiring Connection | Tool Free Quick Wiring Termination | |||
| Driver | Bridgelux Integrated 2-in-1 LED driver & Emergency converter | |||
| Output | Light Source | Bridgelux LED Chip SMD2835R | ||
| Color Temperature | MM =27-65 stands for 2700-6500K | |||
| Lighting Efficiency | 140lm/W | |||
| Power Consumption | 18W | 36W | 540W | |
| Controls | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | ||
| Multimode | Standard Emergency , Microwave Sensor/ Dimming/DALI-2/Low Voltage Input | |||
| Emergency | Charger | 24hrs charging time with the latest temperature controlled BMS | ||
| Emergency Output | 3W (450lm±10%) | |||
| Duration Time | 3Hours | |||
| Testing Facility | Manual Test / Self Test | |||
| Indicators | System status indication through green LED | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate , chassis – polycarbonate | ||
| Mounting | Surface mounted-ceiling/wall/ suspend | |||
| Colour | White | |||
| Dimension L x W x H ( mm) | 648 X 62 X 57mm | 1248 X 62 X 57mm | 1548 X 62 X 57mm | |
| IP/IK Rating | IP65 & IK08 | |||
| Weight | 0 .5kg | 0 .94kg | 1 .16kg | |
| Warranty | 5 years on product , 4 years on battery | |||
| Environment | Operating Temperature | 0° to 50° C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | SAA/ RCM , IEC 60598-1 , IEC 60598-2-2 ,AS/NZS 2293 .3 | ||
| AS/NZS 2293 Classification | C0 D63 , C90 D63 | C0 D80 , C90 D80 | C0 D80 , C90 D80 | |
| Electric class ( 1 ,2 ,3) | 1 | |||
| Accessories | Microwave Dimming Sensor | P/ N:MS01 1/ MS01 1E , MD00lE as options | ||
| Replaceable Battery | P/ N:2120-02 Bodofor® 18650 LiFe PO4 6 .4V 2000mA 02 | |||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

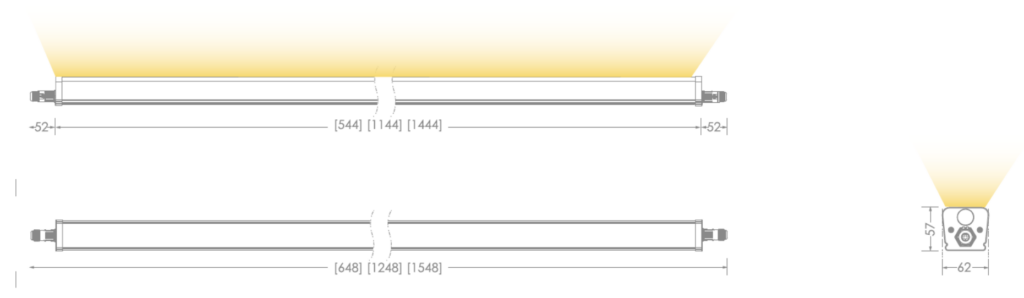

Dimensions(Unit:mm)
