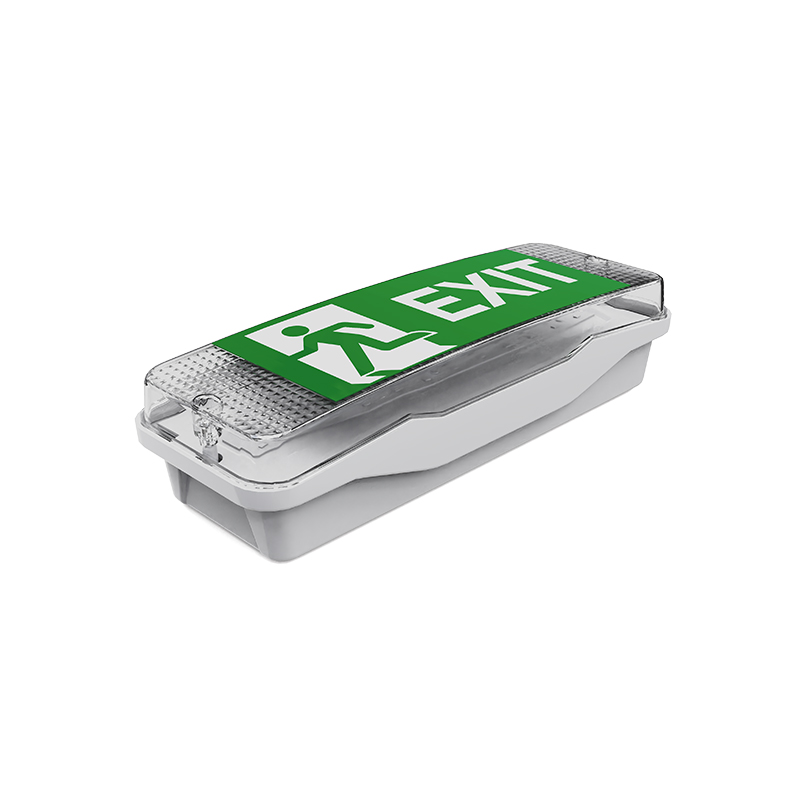

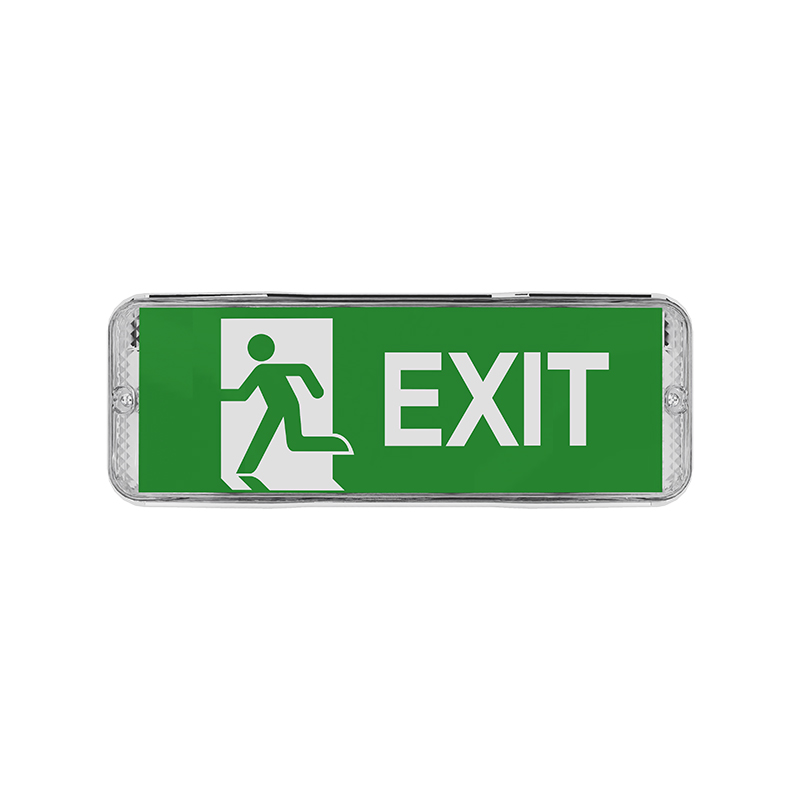

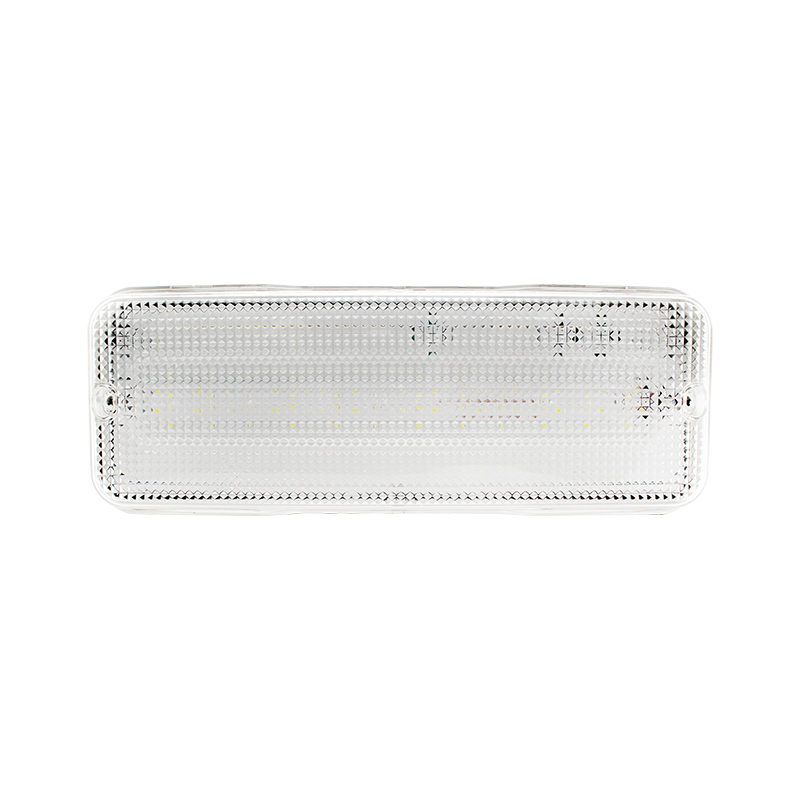

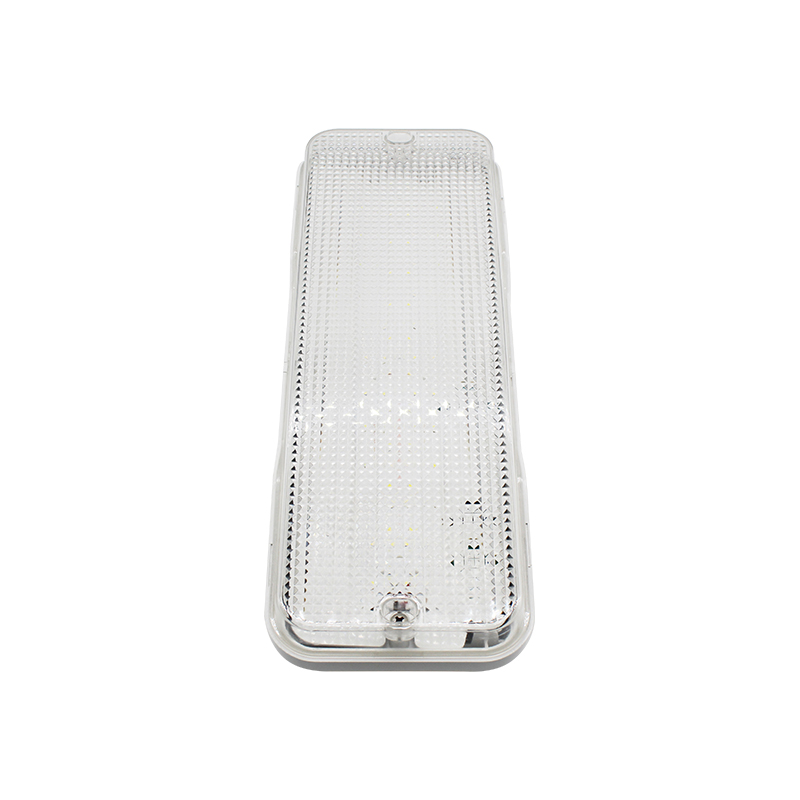

Ecobulk Q1 is a cutting-edge Bulkhead Emergency Light, engineered to meet the highest standards of safety and efficiency.
Designed with both functionality and aesthetics in mind, this product ensures reliable performance and seamless integration into any environment.
It complies with CE and RoHS standards, ensuring safety, reliability, and environmental friendliness.
High-Quality, Low-Cost Battery: Equipped with a 3.7V 2200mA Li-ion battery, this light offers exceptional energy efficiency and long-lasting power at an affordable cost.
With a sleek and stylish design, Ecobulk Q1 enhances the look of any space while providing clear visibility up to 19 meters.
Self-Contained Luminaries with Manual Test feature allows for easy maintenance and periodic testing to ensure optimal performance in emergency situations.

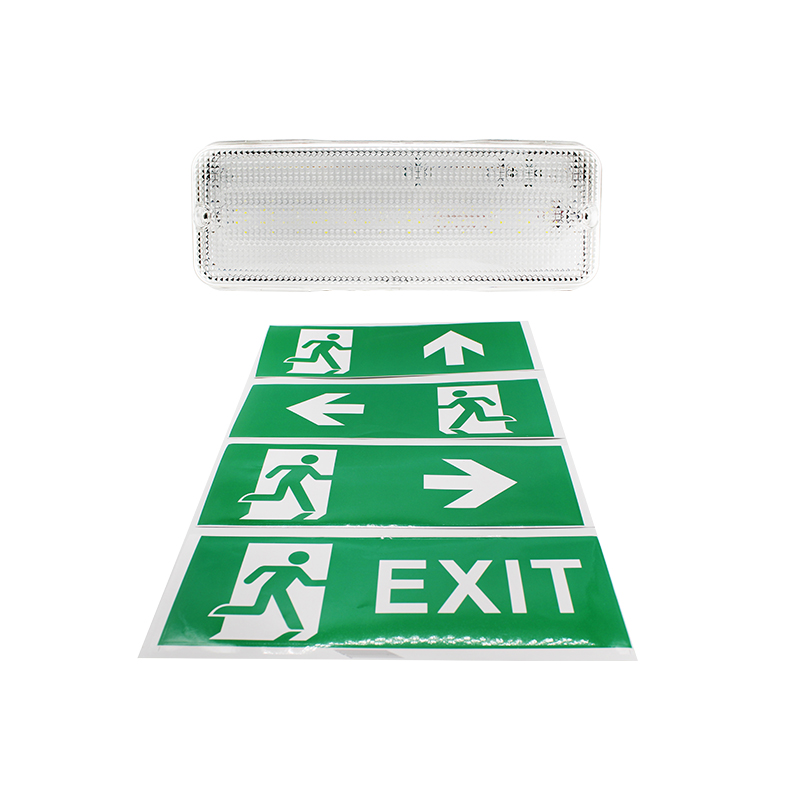

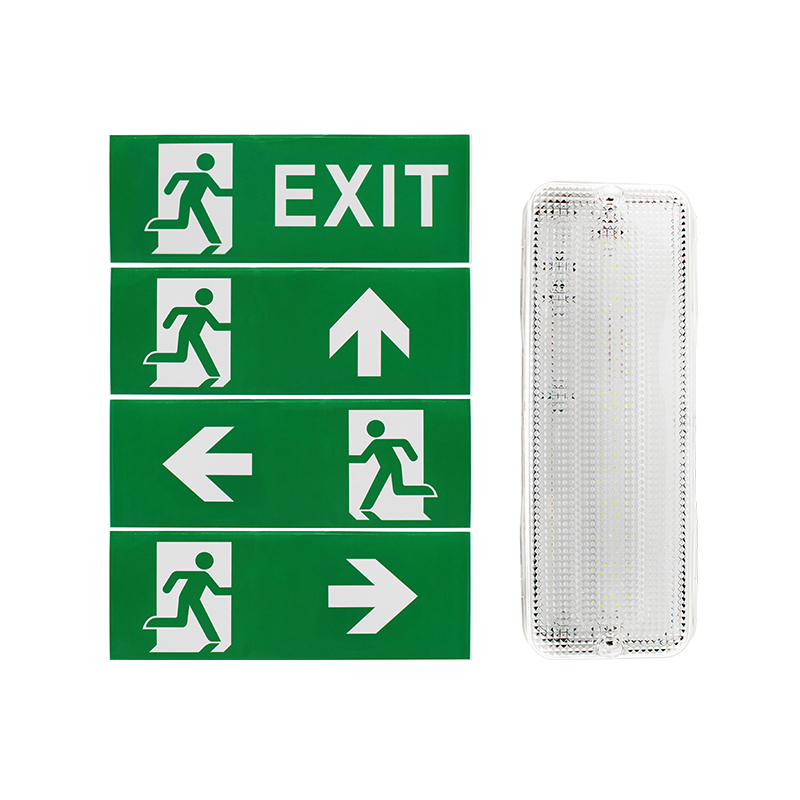

Replaceable and Customizable Pictogram: Ecobulk Q1 comes with interchangeable pictograms, available in flexible arrow options, allowing for easy customization to suit different needs and applications.
Ideal for a variety of settings, our Bulkhead Emergency Light is the perfect solution for those seeking reliable, efficient, and aesthetically pleasing emergency lighting.
Relevant standard
EN55015
EN61347
EN60598-2-22
IEC62133/EN62620
UN38.3(related to Lithium Iron Phosphate Battery)
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | Q1M43W |
| Description | Economical IP65 19M Self-contained LED Emergency Bulkhead | |
| Working | Mode of Operation | Maintained or Non-Maintained |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ |
| PowerConsumption | 4 .5W(Standby ) | |
| Output | Light Source | High performance LEDs , 50 ,000 hours Bridgelux LED Chip |
| Luminous Flux | 240lm ± 10% | |
| Emergency Duration | > 180 minutes | |
| Controls | Charger | 24hrs intelligent 3-stage charger with battery management system |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit |
| Testing Facility | Manual test | |
| Indicators | Battery charger green LED , Function failure through red LED. | |
| Physical | Material | 850℃ UL94V0 Flame-retardant polycarbonate |
| Finishing Color | White RAL9016 | |
| Dimensions LxWxH | 300mm x 1 10mm x 70mm | |
| IP Rating | IP65 | |
| Weight | 0 . 62kg | |
| Warranty | 3 years on product , 2 years on battery | |
| Environment | Operating Temperature | 0° to 40° C |
| Relative Humidity | 0 to 95% | |
| Compliance | Standards | SAA/ RCM , IEC 60598-1 , IEC 60598-2-2 |
| Electric class ( 1 , 2 , 3) | 2 | |
| Accessories | Replaceable Battery | P/ N : 1116-01 | Bodofor® 18650 LiFe PO4 3 .2V 1600mA 01 |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

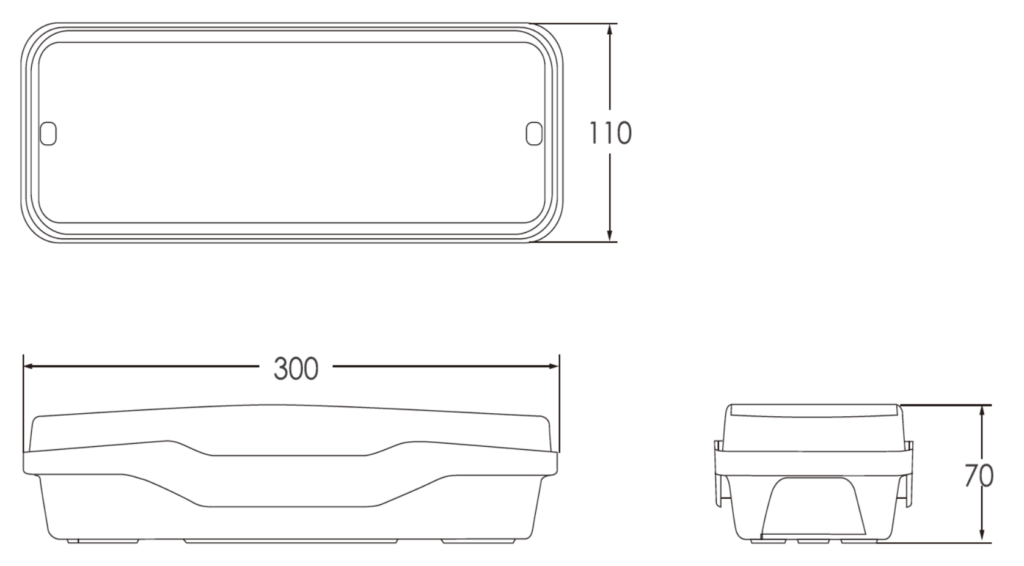

Dimensions(Unit:mm)
