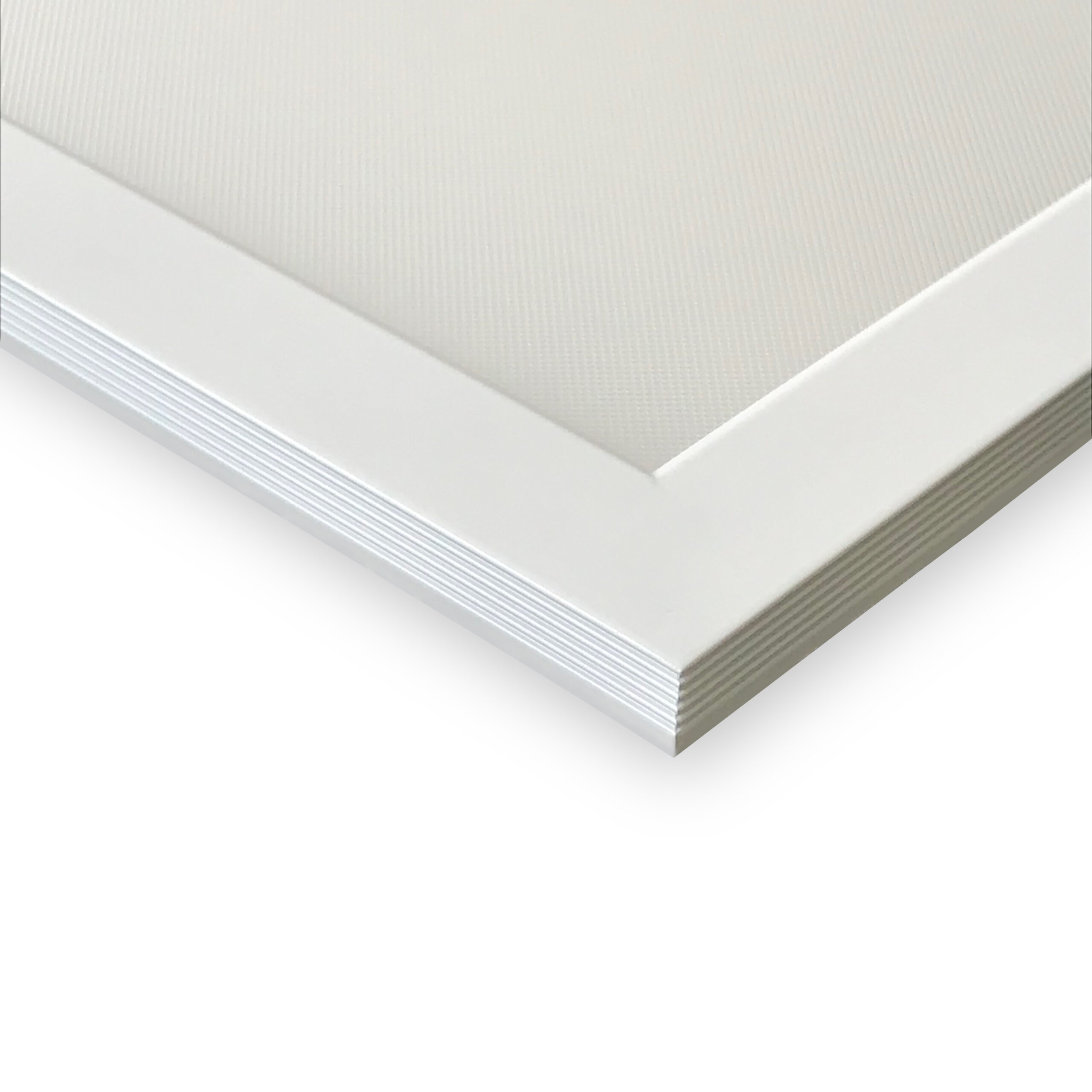

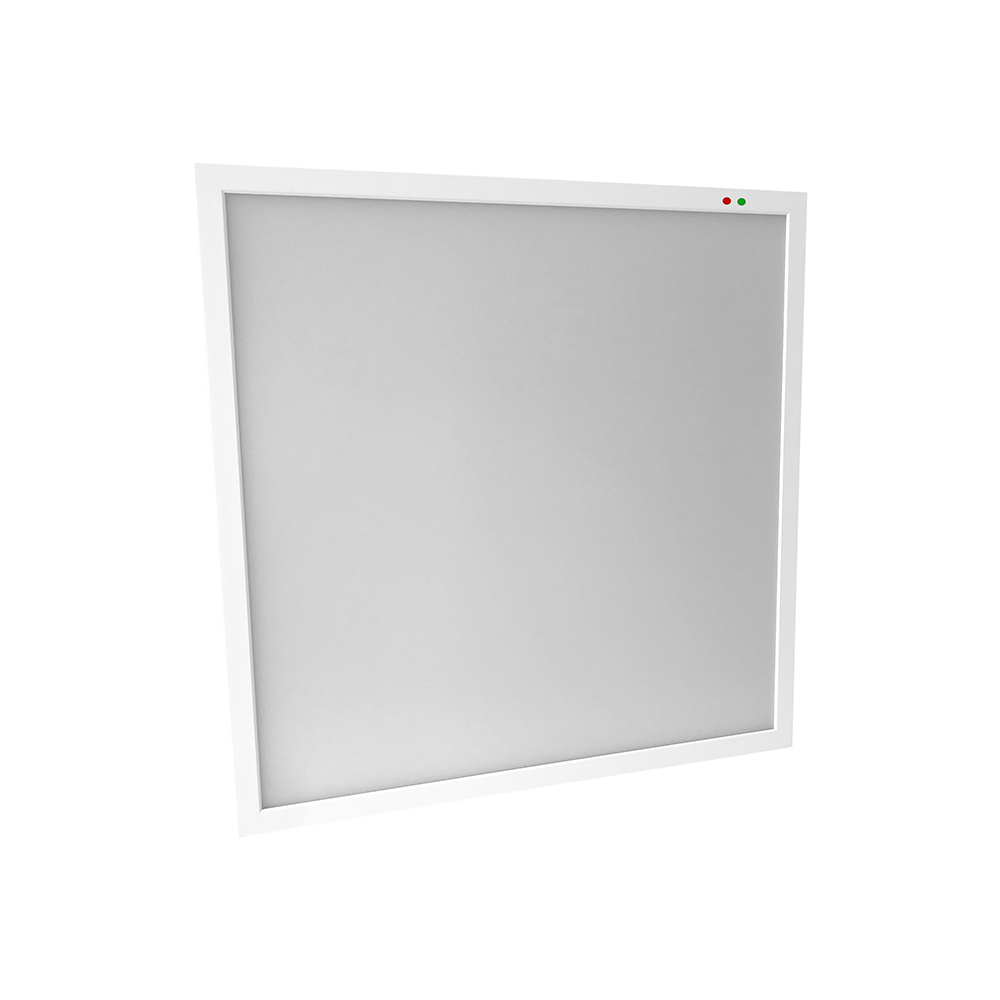

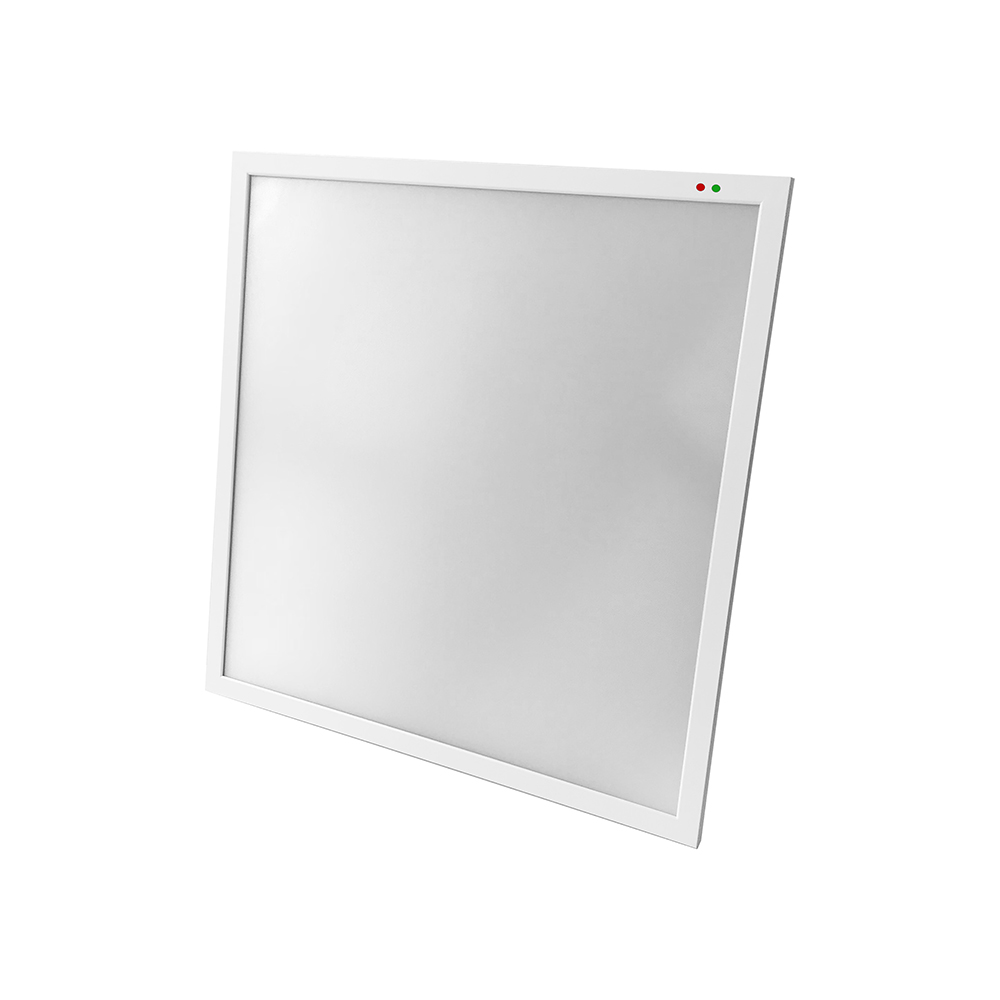

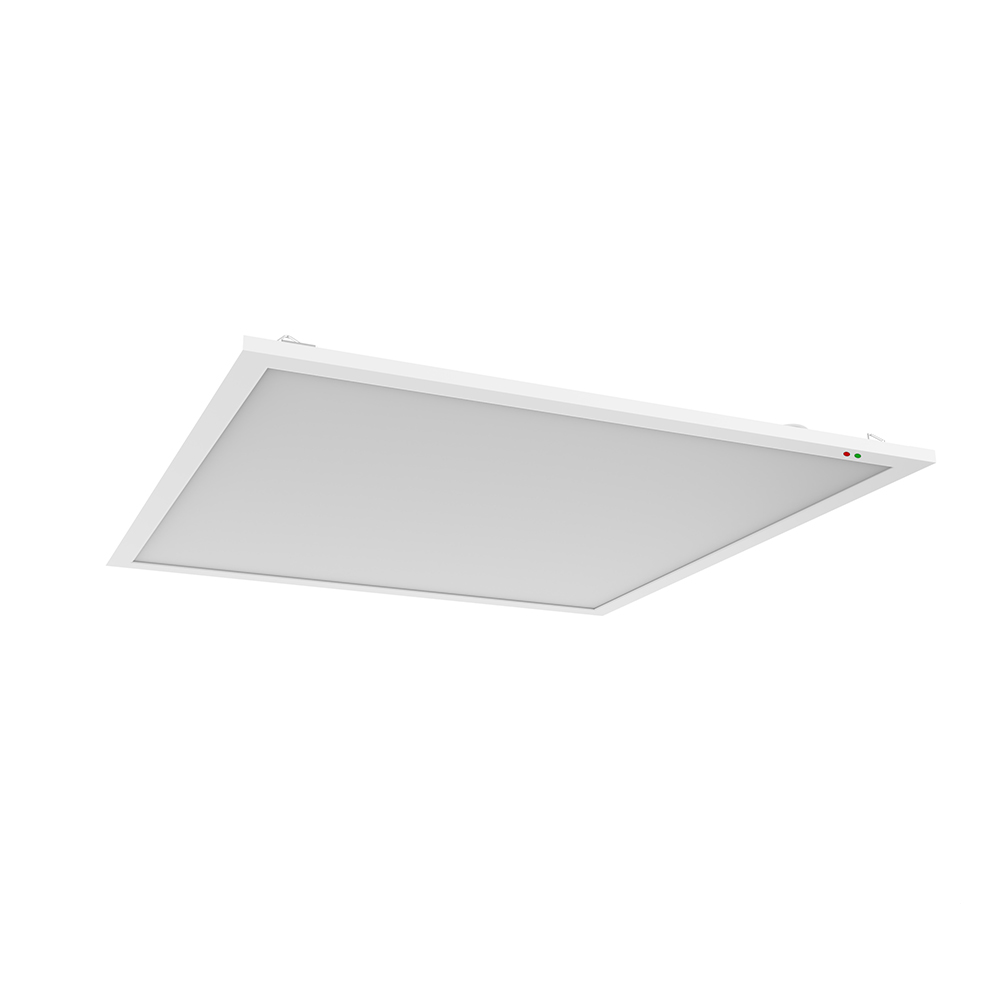

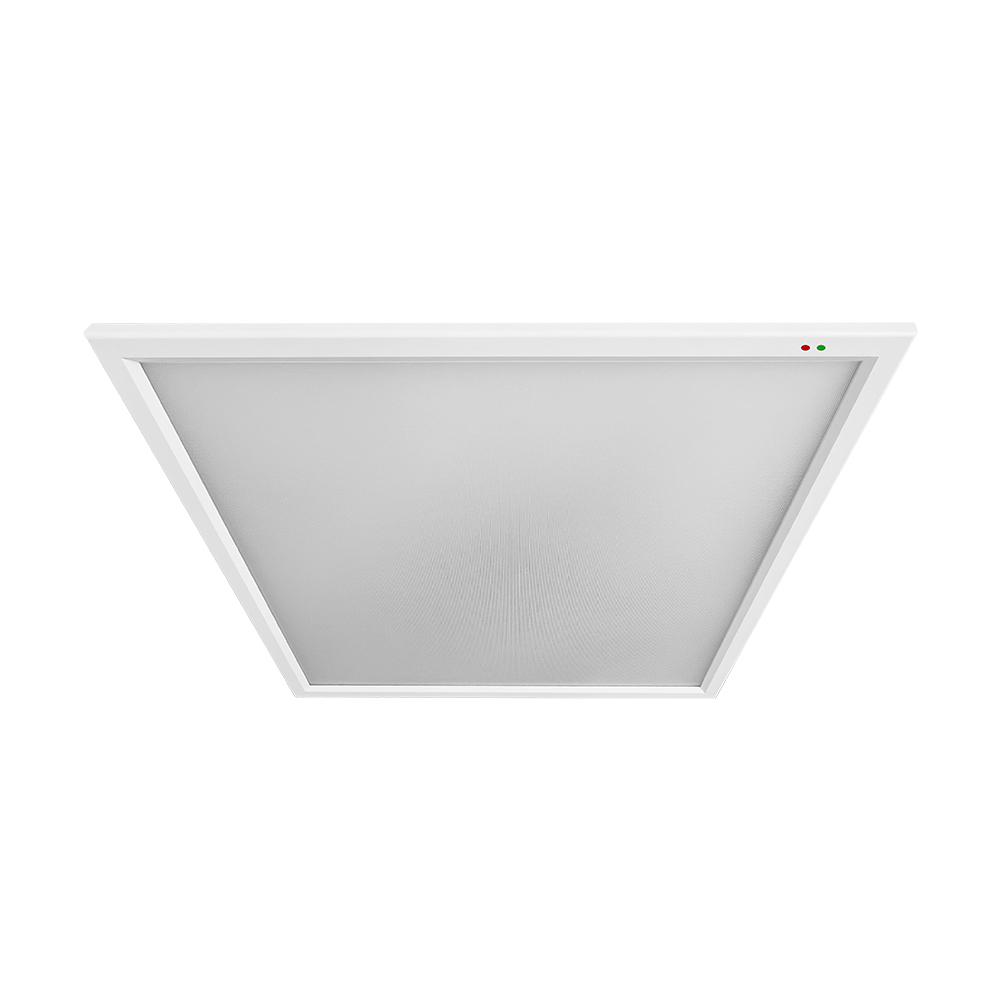

Epanel P60 is our advanced 595mm x 595mm 36W Emergency Panel Light, designed to provide essential illumination in critical situations. This panel light features a sleek, modern design with a backlit surface that offers uniform brightness, making it ideal for both indoor and emergency lighting applications.
With a high luminous efficacy of 120lm/W, this panel light ensures bright and energy-efficient illumination. Its UGR (Unified Glare Rating) is less than 19, which means it provides comfortable lighting with minimal glare, protecting your eyes even during prolonged use.
The highlight of this product is its emergency function. Equipped with a high-performance Lithium Iron Phosphate (LiFePO4) battery, it offers a reliable backup power source. In case of power failure, the emergency mode activates automatically, providing up to 3 hours of continuous lighting at an emergency power consumption of just 5 watts.
This emergency panel light is perfect for offices, hospitals, schools, and other public spaces where safety and reliability are paramount. It combines energy efficiency, comfort, and emergency preparedness in one compact and stylish package.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
IEC 60570:2003+A1:2017+A2:2019
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
Bodofor® LiFePO4 Battery Pack
– 4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | P60-36-MMK-E |
| Description | Commercial Anti-glare Maintained LED Emergency Panel Light | |
| Working | Mode of Operation | Maintained |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ |

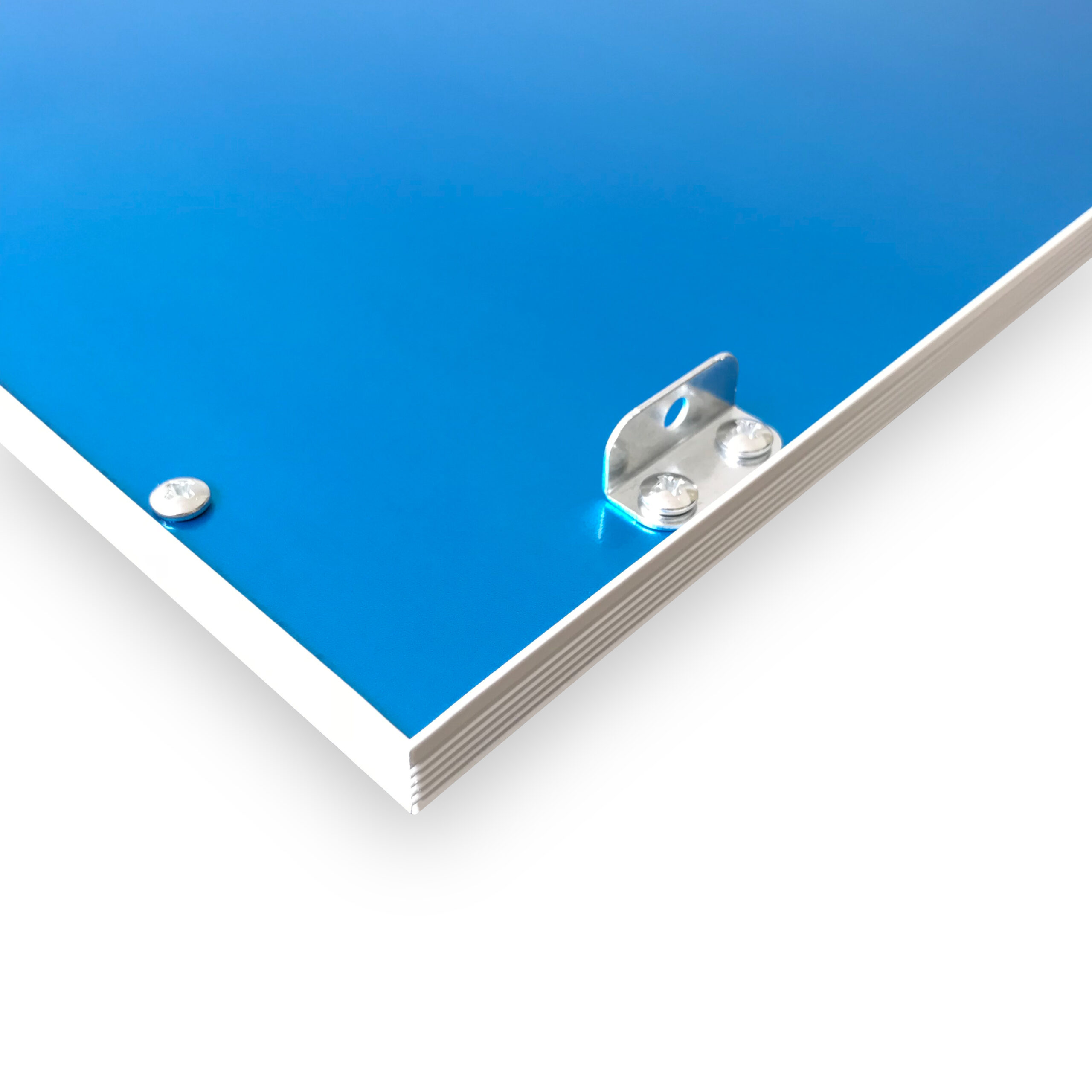

| Installation | Recessed OR Suspending | |
| Output | LED Source | Bridgelux LED Chip |
| Lighting Efficiency | 120lm/w | |
| Power Consumption | 36W | |
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit |
| Emergency Output | 5W(500lm±10%) | |
| Emergency Duration | 3Hours | |
| Testing Facility | Manual test / Self test | |
| Indicators | Battery charger green LED , Function display through red LED. | |
| Physical | Material | 850°C Glow wire test Flame-retardant polycarbonate |
| Finishing Color | White | |
| Dimension L x W x H | 595 X 595 X 25mm | |
| IP Rating | IP20 | |
| Weight | 1 .5kg | |
| Warranty | 5 years on product , 4 years on battery | |
| Environment | Operating Temperature | 0° to 50° C |
| Relative Humidity | 0 to 95% | |
| Compliance | Standards | CE/UKCA/ RCM , IEC 60598-1 , IEC 60598-2-2 ,AS/NZS 2293 .3 |
| AS/NZS 2293 Classification | C0 D80 , C90 D80 | |
| Accessories | Replaceable Battery | P/ N:2134-01 | Bodofor® 26650 LiFe PO4 6 .4V 3400mA 01 |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.
Dimensions(Unit:mm)
