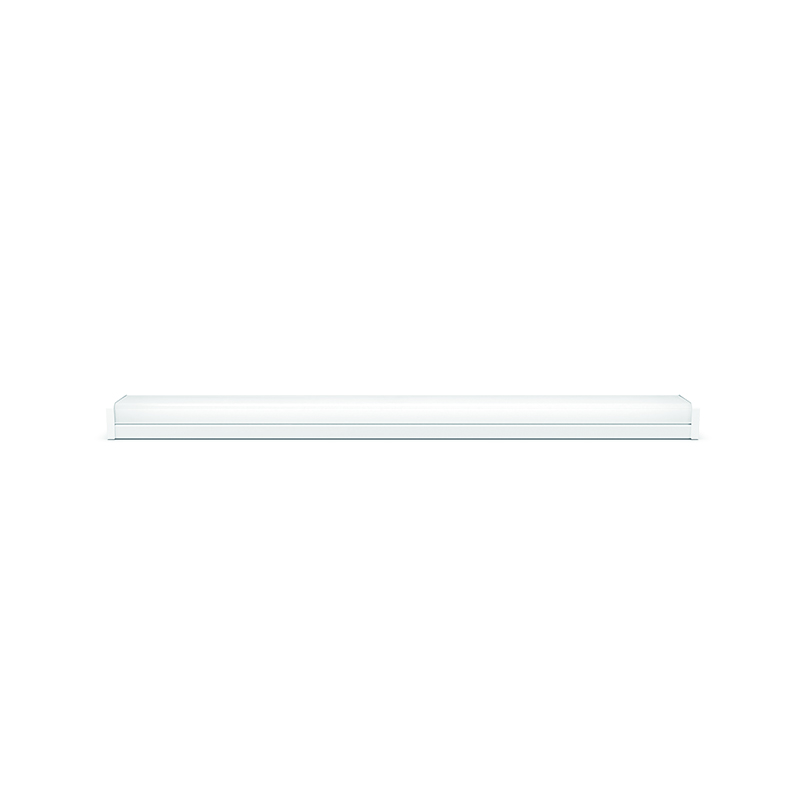

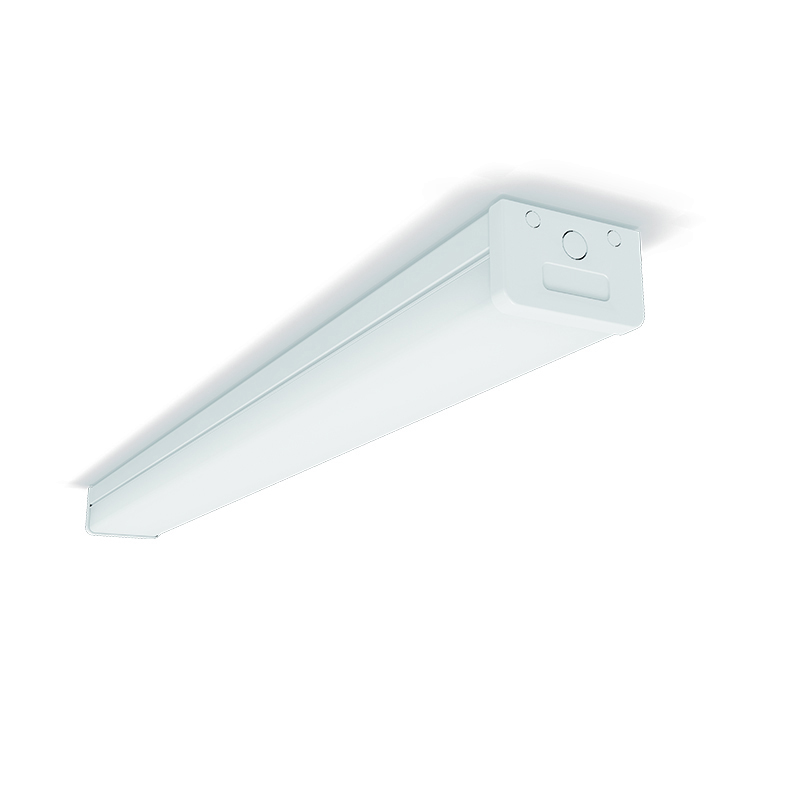

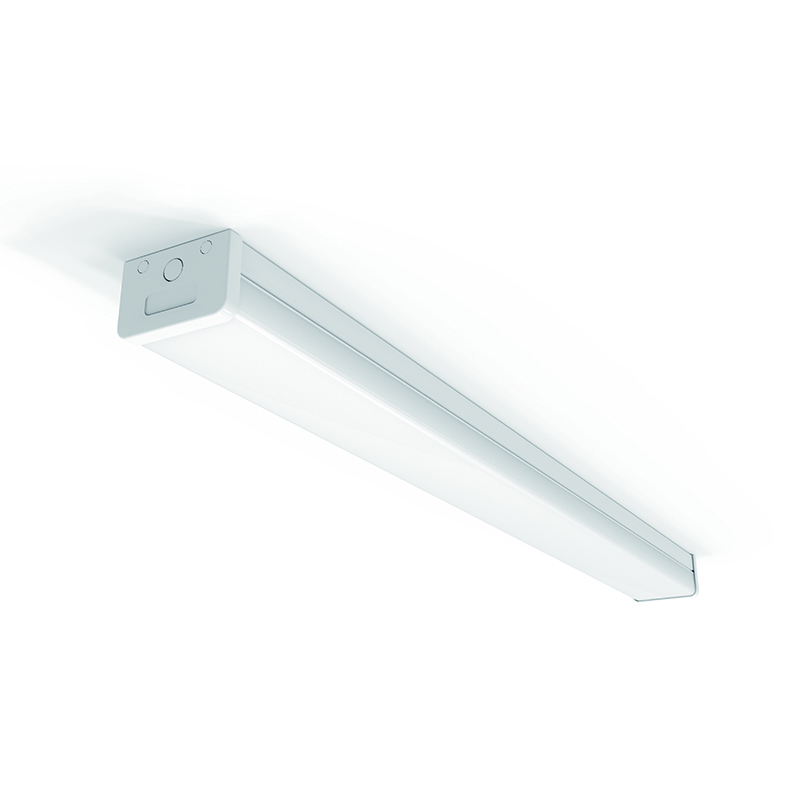

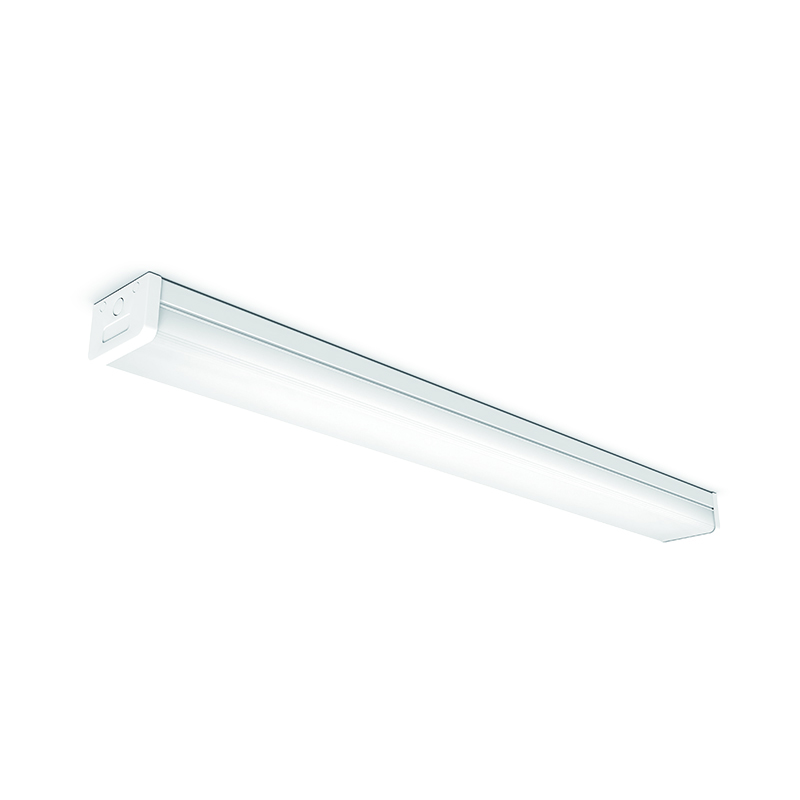

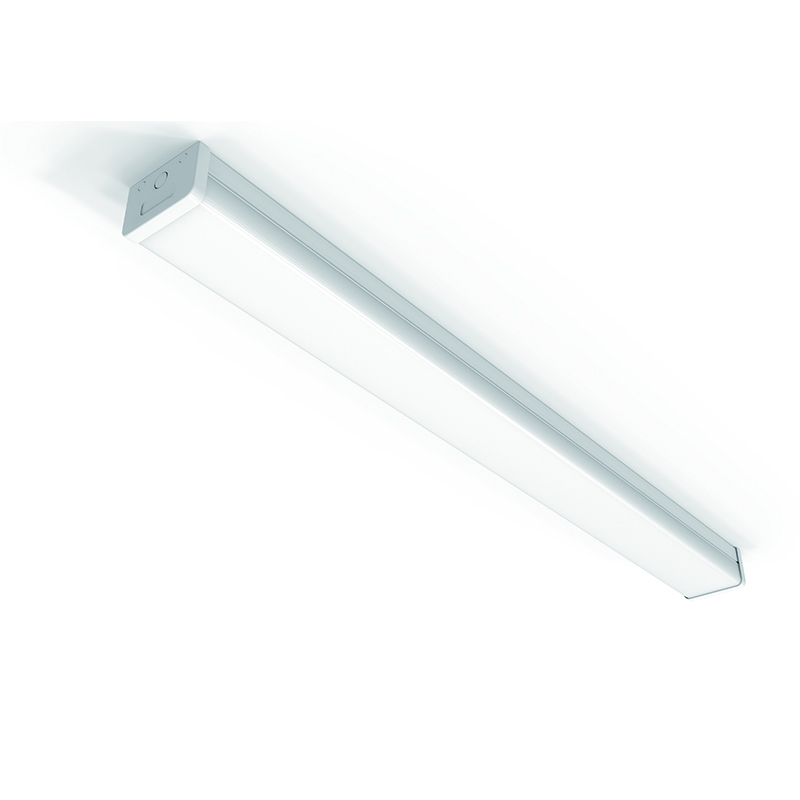

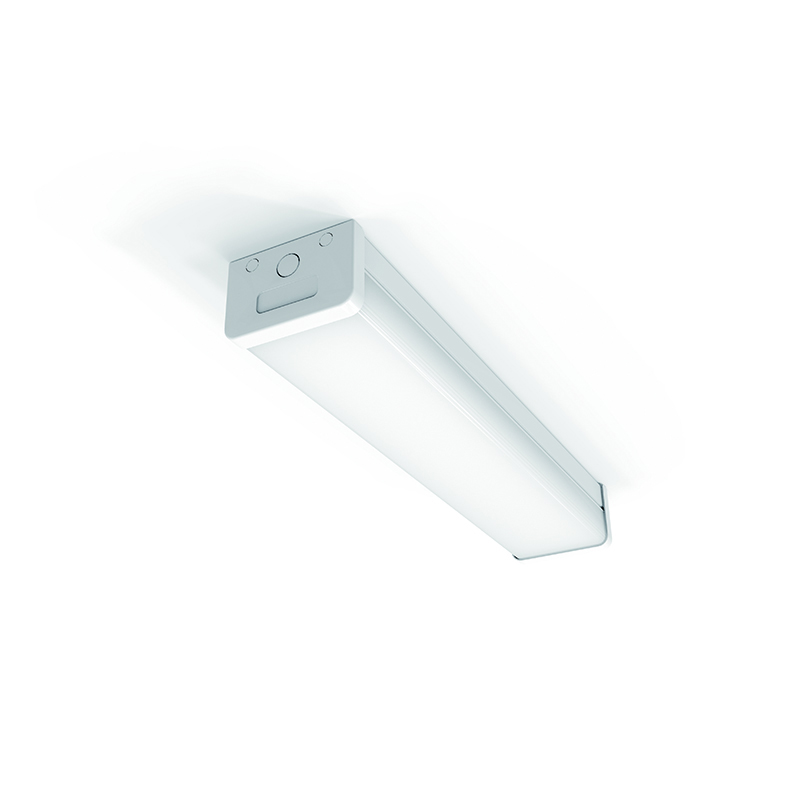

Batman B1 is a traditional dual-light fluorescent lamp replacement batten light, utilizing 6063 aluminum as a radiator to achieve up to 120W high-power lighting. It boasts an IP44 high protection level, lower light decline, and longer lifespan characteristics. The B1 Range is available in 600mm, 1200mm, and 1500mm lengths, with a width of 118mm and a design free of darkness, making it a perfect replacement for traditional T5/T8 fluorescent double-tubes.
The excellent structural design ensures that all components of the Batman B1 are modular. This includes lampshades, covers, LED driver/strips, and the microwave sensor and emergency function module, which can be added later according to project requirements.
All components can be quickly replaced. The application of large terminal terminals such as PA14/PA16 enables Batman B1EM to meet the terminal connection requirements of p2.5-4.0 m in business and industry settings.
It is equipped with a 3W emergency power mode, ensuring 120/180 minutes of reliable illumination during emergencies. Our advanced Battery Management System (BMS), powered by high-quality NTC Lithium iron phosphate(LiFePO4) batteries, offers both manual and automatic testing options.
Featuring an exclusive integrated driver design that unifies the LED driver and emergency converter into a single entity, and equipped with Bridgelux‘s pioneering 2-in-1 emergency driver, this marks the world’s first reliable design aimed at cutting the costs of emergency batten lights, establishing a new benchmark for emergency lighting.
Our B1 series encompasses two distinct models: B1EL and B1EM. The B1EL incorporates a built-in emergency light source, while the B1EM opts for an external emergency light source, utilizing our proprietary high-quality optical lens, crafted to achieve the D63/D80 lighting standards as per Australia’s AUS/NZS AS2293.3.
These two exemplary, high-reliability emergency LED batten luminaires are designed to cater to the diverse demands of various markets and installation scenarios, significantly reducing the end-user’s costs.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | B1-2FT20-MMK-EL | B1-4FT40-MMK-EL | B1-5FT60-MMK-EL |
| Description | Ultra Diffused 2-in-1 Emergency LED Batten Light | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | ||
| Wiring Connection | Push-Fit Tool Free Termination | |||
| Driver | Bridgelux Integrated 2-in-1 LED driver & Emergency converter | |||
| Output | Light Source | Bridgelux LED Chip SMD2835R | ||
| Color Temperature | MM =27-65 stands for 2700-6500K | |||
| Lighting Efficiency | 140lm/W | |||
| Power Consumption | 20W | 40W | 60W | |
| Controls | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | ||
| Multimode | Standard Emergency , Microwave Sensor/ Dimming/DALI-2/Low Voltage | |||
| Emergency | Charger | 24hrs charging time with the latest temperature controlled BMS | ||
| Emergency Output | 3W (450lm±10%) | |||
| Duration Time | 3Hours | |||
| Testing Facility | Self test | |||
| Indicators | System status indication through green LED | |||
| Physical | Construction | Diffuser – high transmission opal polycarbonate , chassis – polycarbonate | ||
| Mounting | Surface mounted-ceiling/wall/ suspend | |||
| Colour | White | |||
| Dimension L x W x H ( mm) | 600 X 1 18 X 72mm | 1200 X 1 18 X 72mm | 1500 X 1 18 X 72mm | |
| IP/IK Rating | IP44 & IK08 | |||
| Weight | 1 .5kg | 2 .4kg | 3 .3kg | |
| Warranty | 5 years on product , 4 years on battery | |||
| Environment | Operating Temperature | 0° to 50° C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | SAA/ RCM , IEC 60598-1 , IEC 60598-2-2 ,AS/NZS 2293 .3 | ||
| AS/NZS 2293 Classification | C0 D63 , C90 D63 | C0 D80 , C90 D80 | C0 D80 , C90 D80 | |
| Electric class ( 1 ,2 ,3) | 1 | |||
| Accessories | Microwave Dimming Sensor | P/ N:MS01 1/ MS01 1E , MD00lE as options | ||
| Replaceable Battery | P/ N:2120-02 Bodofor® 18650 LiFe PO4 6 .4V 2000mA 02 | |||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

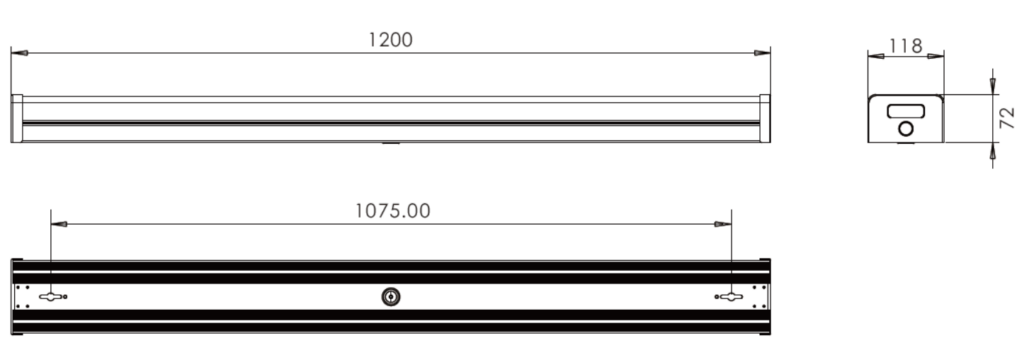

Dimensions(Unit:mm)
