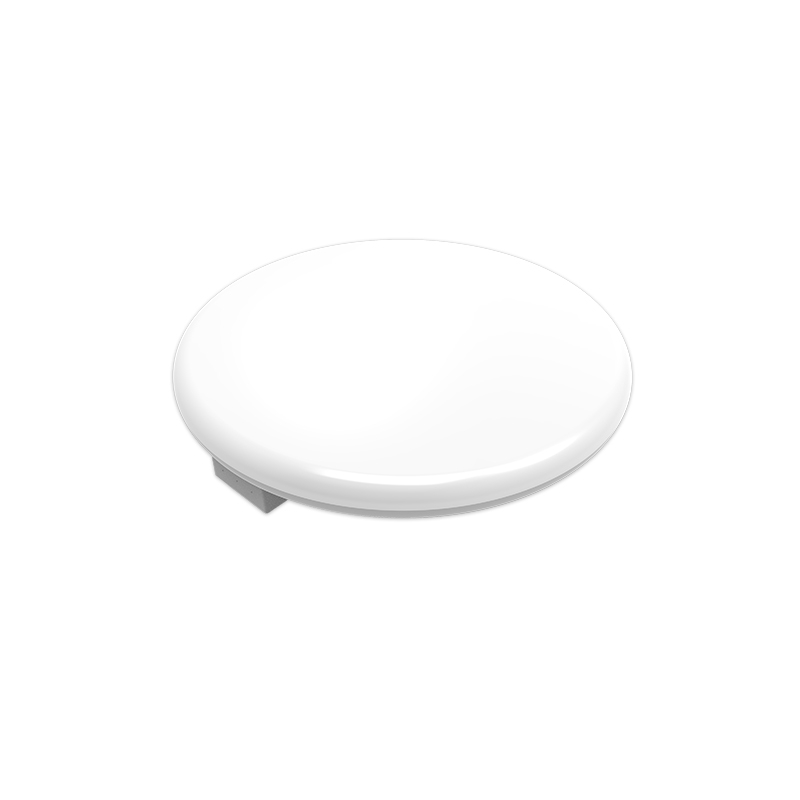

Clite C300 is IP65 waterproof industrial & commercial design of emergency ceiling light, which is a maintained fixture with a continuous operating power of 24W during normal conditions and 2W during emergency mode.
It provides up to 2/3 hours of emergency lighting, ensuring safety and visibility in critical situations.
The light is powered by a high-quality 3.2V 2000mAh LiFePO4 battery, known for its superior performance, long life, and safety.
The sleek design and stable performance make this emergency ceiling light ideal for commercial, industrial, and residential applications where reliable emergency illumination is essential.

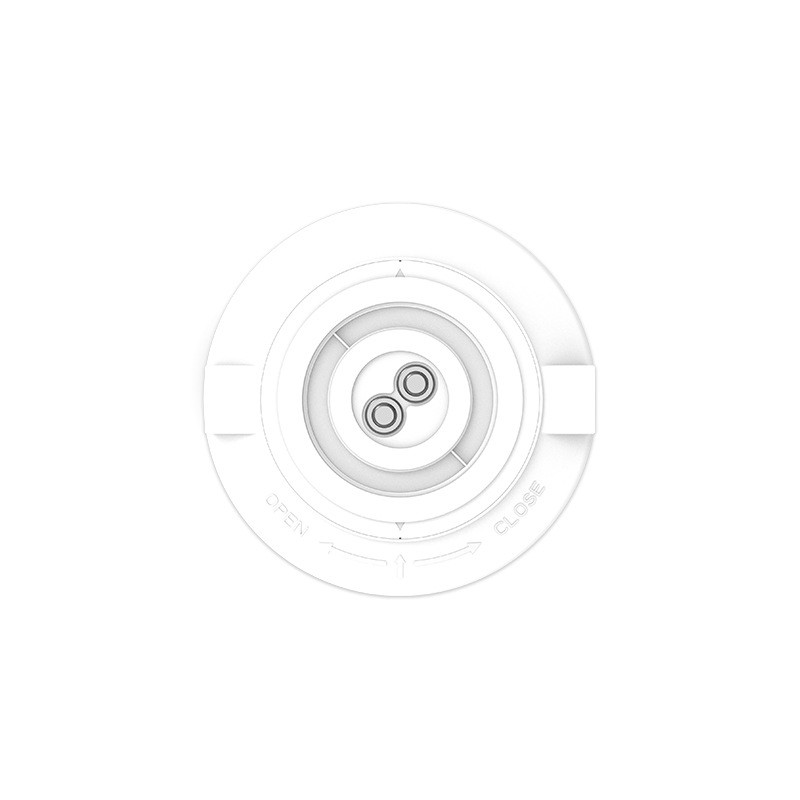

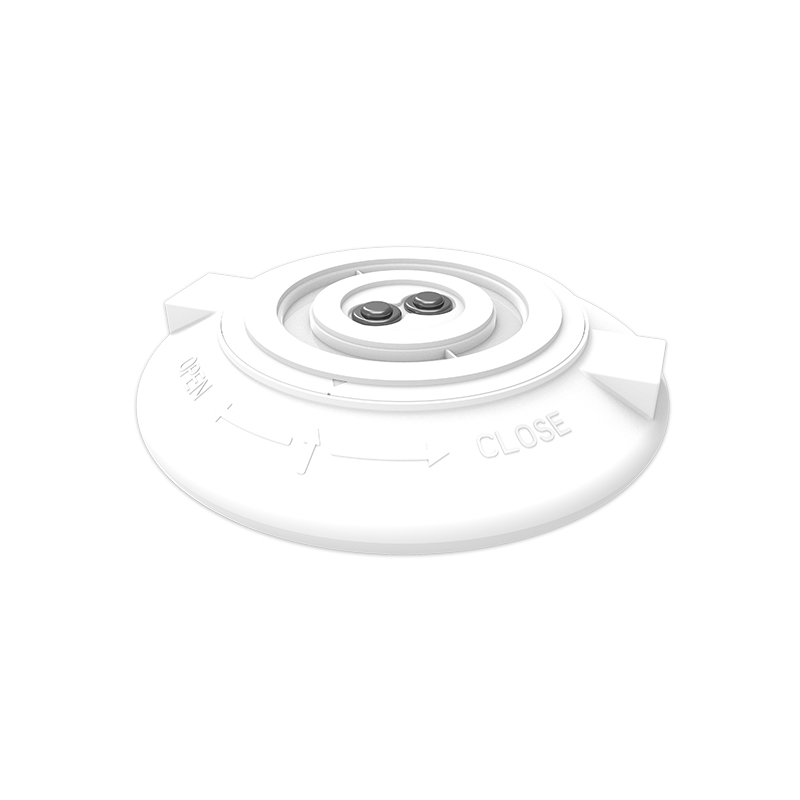

C300 have 2 version of this model: C300EL and C300EM . C300EL come with Push-Fit Tool-Free termination while C300EM comes with PA14/PA16 Large termination and both are aims to cut down the cost during installation and maintain.
The maintained feature ensures that the light remains functional both in regular use and during power outages, offering peace of mind and compliance with safety standards.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | C300-R15-MMK-EL | C300-R28-MMK-EL |
| Description | IP65 Quality Industrial Maintained LED Emergency Down Light | ||
| Working | Mode of Operation | Maintained | |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | |
| Wiring Connection | Push-Fit Termination | ||
| Output | Light Source | Bridgelux LED Chip SMD2835R | |
| Lighting Efficiency | 140lm/W | ||
| Power Consumption | 15W | 28W | |
| Emergency Duration | >180 minutes | ||
| Controls | Charger | 24hrs charging time with the latest temperature controlled BMS | |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |
| Emergency Output | 2W (300lm±10%) | 3W (450lm±10%) | |
| Duration Time | 3Hours | 2Hours | |
| Testing Facility | Self test | ||
| Indicators | Battery charger green LED , Function display through yellow LED. | ||
| Physical | Material | 850°C Glow wire test Flame-retardant polycarbonate | |
| Finishing Color | White | ||
| Dimension LxWxH( mm) | φ300 x 60mm | ||
| IP Rating | IP65 | ||
| Weight | 1.25kg | ||
| Warranty | 5 years on product , 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50° C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | CE/UKCA/ RCM , IEC 60598-1 , IEC 60598-2-2 | |
| Electric class ( 1 ,2 ,3) | 1 | ||
| Accessories | Replaceable Battery | P/ N:1232-02 Bodofor® 18650 LiFe PO4 3 .2V 3200mA 02 | |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

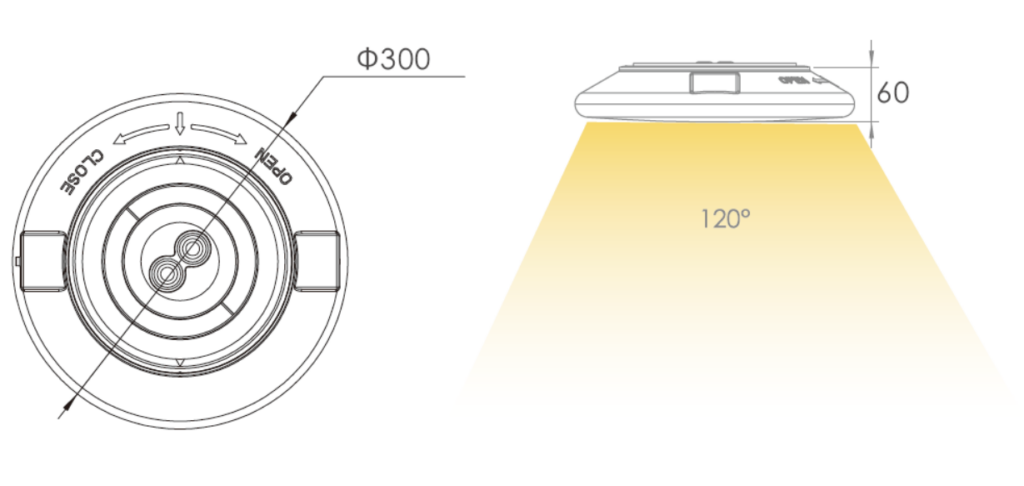

Dimensions(Unit:mm)
