General Information
|
| CE Mark Compliance |
CE/UKCA marked, RoHS and REACH compliant |
| Relevant Standards |
EN61347-2-7 and EN55015 |
| Manufacturing Quality Approval |
ISO9001: 2008 |
Product Data
|
| Art. No. |
K10S23F |
K10S41F |
| Input Voltage |
AC220-240V 50/60Hz |
AC220-240V 50/60Hz |
| Emergency Power |
2W,CP |
4W,CP |
| LED Output |
DC60~300V |
DC60~300V |
| Test Facility |
Self-Test |
Self-Test |

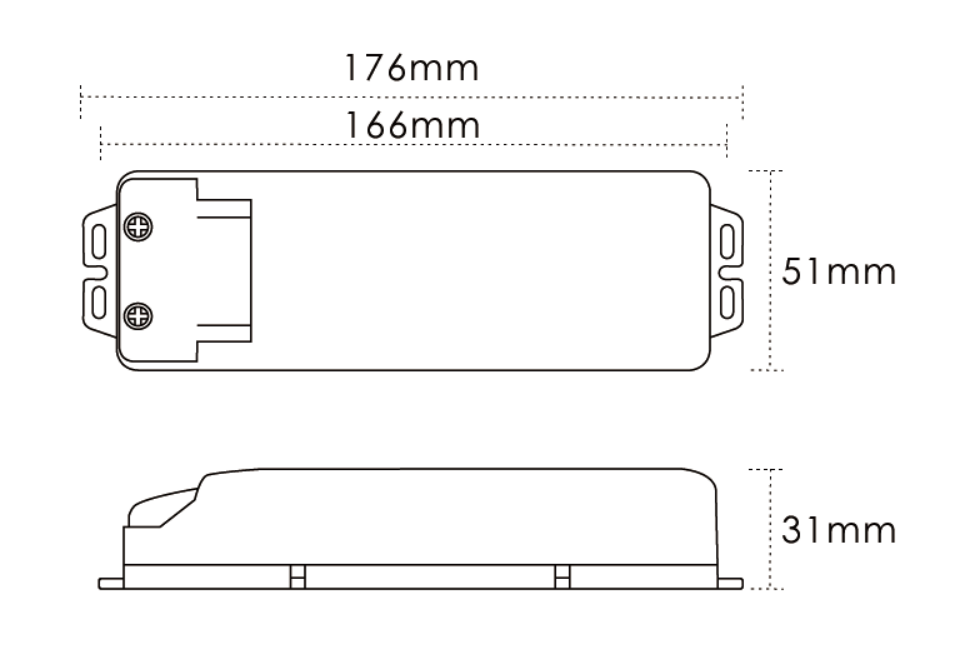

| Dimension |
L176*W51*H31 mm |
L176*W51*H31 mm |
| Fixing Centres |
166(F) mm |
166(F) mm |
| Material |
850°C Glow wire test PC |
850°C Glow wire test PC |
| Finishing Color |
White RAL9016 |
White RAL9016 |
| Protection |
IP 20 |
IP 20 |
| Packing List |
20PCS/CTN |
20PCS/CTN |
LiFePO4 Battery
|
| Charge Time |
16-24 Hours |
| Discharge Duration |
3 Hours |
| Battery Pack |
P/N: 1140-01|Bodofor® 26650 LiFePO4 3.2V 4000mA 01 |
| Ambient Temperature |
0……60°C |
Accessories
|

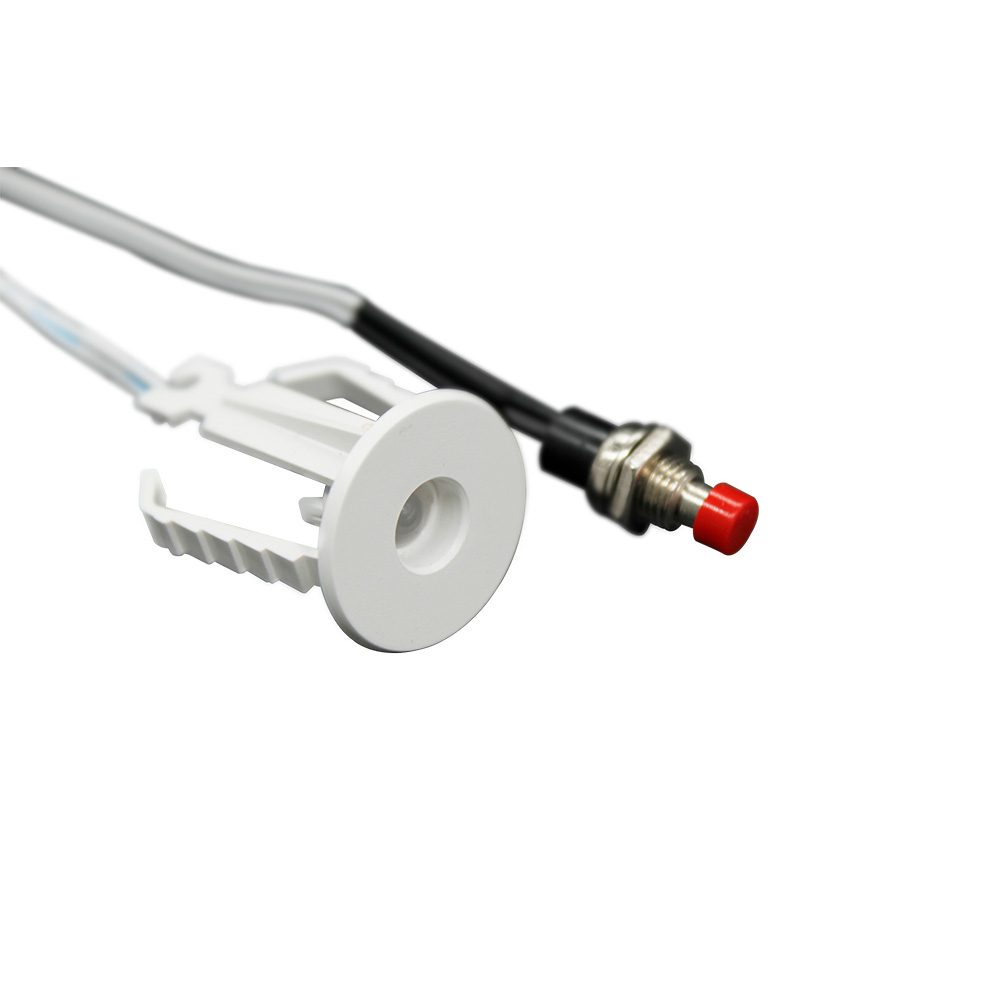

| Test switch |
Cut Hole: Φ 7.2mm, IP 20 |
| LED Indicator |
Cut Hole: Φ 6.8mm, Red&Green Dual-Color LED indicator |
| UL2468-22AWG-2P, L=310±5mm, XH2.54-4P |
