General Information
|
| CE Mark Compliance |
CE/UKCA marked, RoHS and REACH compliant |
| Relevant Standards |
EN61347-2-7 and EN55015 |
| Manufacturing Quality Approval |
ISO9001: 2008 |
Product Data
|
| Art. No. |
KTM23F |
| Input Voltage |
AC220-240V 50/60Hz |
| Emergency Power |
2W,CP |
| LED Output |
20~200Vdc CP. |
| Test Facility |
Manual Test |

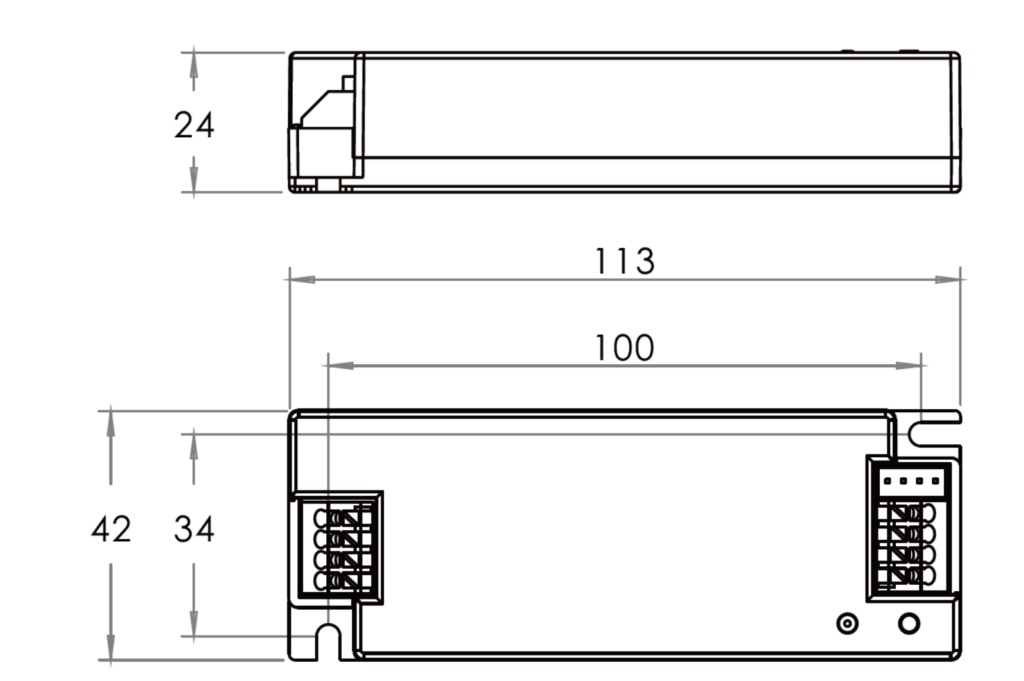

| Dimension |
L113*W42*H24 mm |
| Fixing Centres |
112(F)/110.6(S) mm |
| Material |
850°C Glow wire test PC |
| Finishing Color |
White RAL9016 |
| Protection |
IP 20 |
| Packing List |
50PCS/CTN |
LiFePO4 Battery
|
| Charge Time |
24 Hours |
| Discharge Duration |
3 Hours |
| Battery Pack |
P/N: 1120-00|Bodofor® 18650 LiFePO4 3.2V 1800mA 00 |
| Ambient Temperature |
0……60°C |

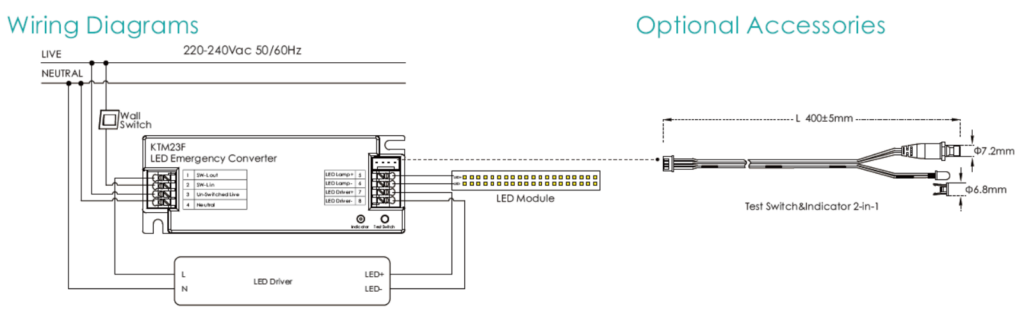

Optional Accessories
|
| Test switch |
Cut Hole: Φ7.2mm, IP 20 |
| LED Indicator |
Cut Hole: Φ6.8mm, Red&Green Dual-Color LED indicator |
| UL2468-22AWG-2P, L=400±5mm, XH2.54-4P |
