General Information
|
| CE Mark Compliance |
CE/UKCA marked, RoHS and REACH compliant |
| Relevant Standards |
EN61347-2-7 and EN55015 |
| Manufacturing Quality Approval |
ISO9001: 2008 |
Product Data
|
| Art. No. |
P1M53N |
P1S53N |
| Input Voltage |
AC220-240V 50/60Hz |
AC220-240V 50/60Hz |
| Emergency Power |
5W,CP |
5W,CP |
| LED Output |
DC10~55V |
DC10~55V |

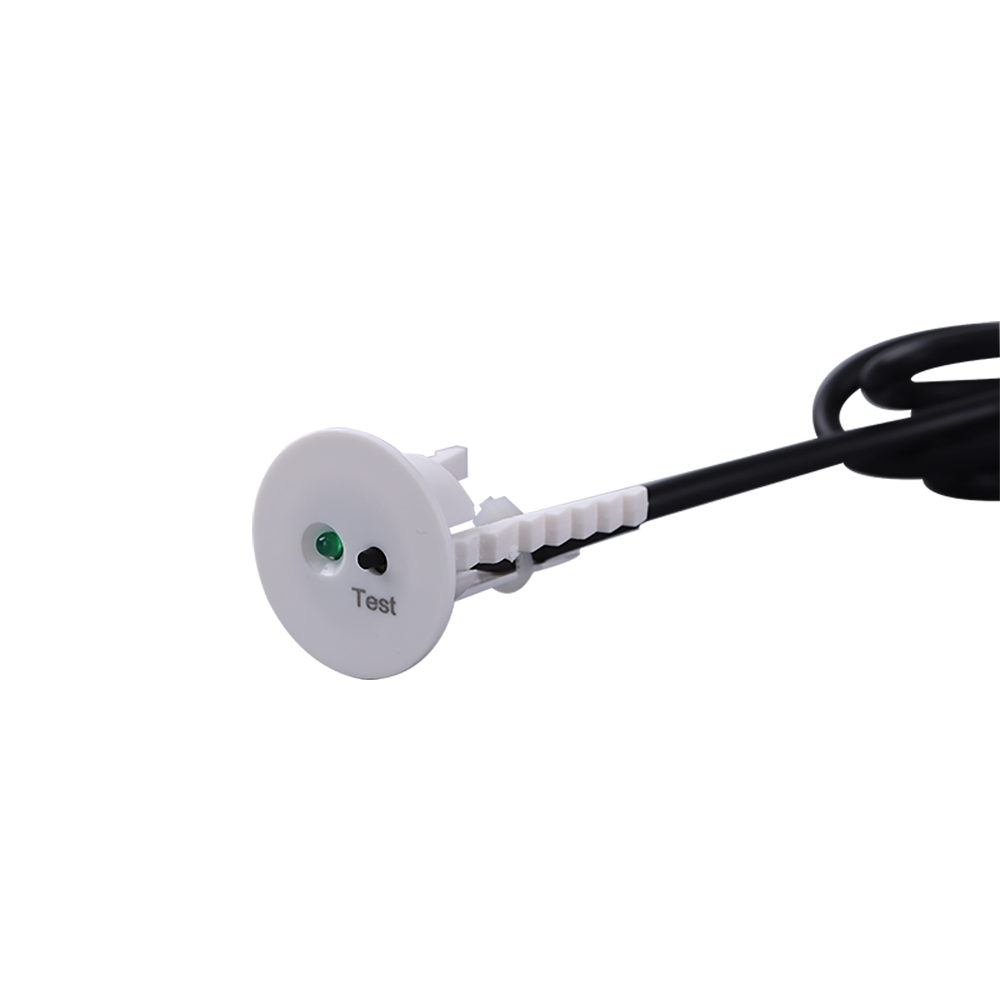

| Test Facility |
Manual Test |
Self-Test |

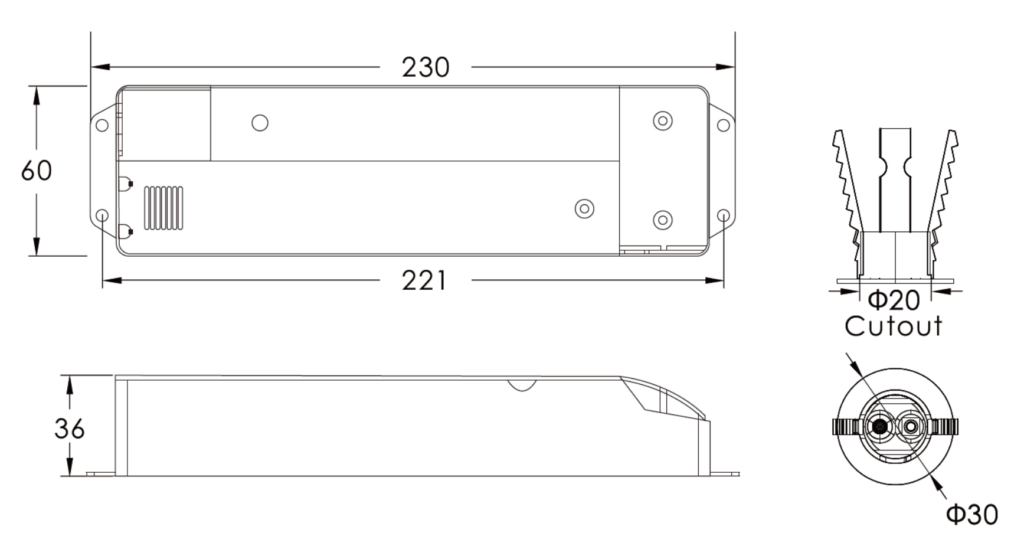

| Dimension |
L230*W60*H36 mm |
L230*W60*H36 mm |
| Fixing Centres |
221(F) mm |
221(F) mm |
| Material |
850°C Glow wire test PC |
850°C Glow wire test PC |
| Finishing Color |
White RAL9016 |
White RAL9016 |
| Protection |
IP 20 |
IP 20 |
| Packing List |
15PCS/CTN |
15PCS/CTN |
LiFePO4 Battery
|
| Charge Time |
24 Hours |
| Discharge Duration |
3 Hours |
| Battery Pack |
P/N: 2134-02|Bodofor® 26650 LiFePO4 6.4V 3400mA 02 |
| Ambient Temperature |
0……60°C |
