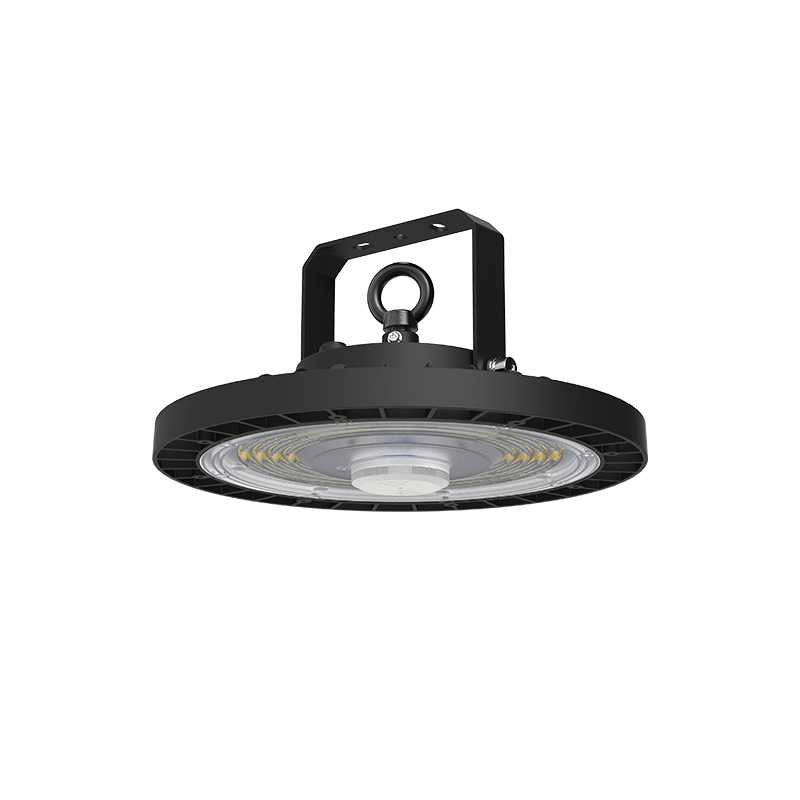

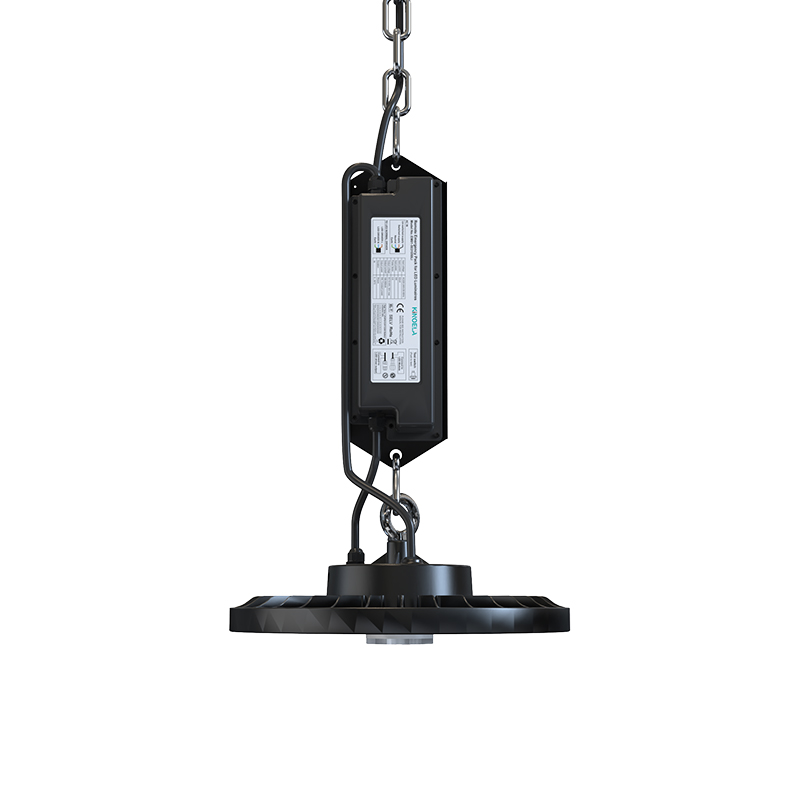

Emergency High Bay Light Hibay H1 is designed to provide robust and reliable illumination in high-ceiling industrial environments, ensuring safety and operational continuity during power outages. This IP65-rated light fixture features a durable construction suitable for harsh conditions, making it ideal for warehouses, factories, and other industrial settings.
The light offers a DIP switchable power option of 100W, 150W, or 200W, with a high luminous efficacy of up to 190 lm/W, ensuring bright and energy-efficient illumination. It is equipped with a Lithium Iron Phosphate (LiFePO4) battery, providing emergency backup power with three modes: 10W for 3 hours, 15W for 2 hours, or 20W for 90 minutes. This flexibility allows users to choose the best emergency configuration based on their specific needs.
The Emergency High Bay Light is available in both manual and automatic testing versions. The manual version includes a test switch and remote control for easy emergency testing, while the automatic version ensures the lights are always ready for emergencies. This feature is crucial for compliance with safety regulations and maintaining operational safety during critical situations.
With its long lifespan, energy efficiency, and robust design, our Emergency High Bay Light is a cost-effective and reliable solution for industrial emergency lighting needs.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | H1-R200-MMK-E | |
| Description | IP65 Industrial Waterproof Maintained LED Emergency Highbay | ||
| Working | Mode of Operation | Maintained | |
| Voltage& Frequency | 220-240vac, 50/60HZ | ||
| Input | Installation | Suspending/wall mounted to meet different customer needs | |
| LED Source | Bridgelux High lumens LED SMD2835 | ||
| Output | Color Temperature | MM =27-65 stands for 2700-6500K | |
| Lighting Efficiency | 150lm/w | ||
| Power Consumption | 200W, DIP Switchable to 150W/ 100W | ||
| Beam Angle | 90° ,one Angle can cover more than 90% of the marke | ||
| Controls | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |
| Multimode | 0-10V Dimming / Microsensor and Emergency for optional | ||
| Emergency | Charger | 24hrs intelligent 3-stage charger with battery management system | |
| Emergency Output | 10W(1600lm±10%)/ 15W(2500lm±10%)/20W(3000lm±10%) | ||
| Duration Time | 3hours/2hours/ 1.5hours | ||
| Testing Facility | Manual test / Self test | ||
| Indicators | Battery charger green LED , Function failure through red LED. | ||
| Physical | Construction | Diffuser – high transmission opal polycarbonate , chassis – Aluminum | |
| Mouting | Suspending/wall mounted | ||
| Colour | Black | ||
| Dimension L x W x H | φ300x58mm/380x123x56 .5mm | ||
| IP Rating | IP65 | ||
| Weight | 2.3kg | ||
| Warranty | 5 years on product , 4years on battery | ||
| Environment | Operating Temperature | -40° to 50° C | |
| Relative Humidity | -10 to 95% | ||
| Compliance | Standards | CE/UKCA/ RCM , EN1838 , IEC60598 . 1 , AS/NZS 2293 | |
| AS/NZS 2293 Classification | C0 D125 , C90 D80 | ||
| Accessories | Microwave Dimming Sensor | P/ N : H200-S: MC094-S03 | |
| Replaceable Battery | P/ N:4140-02 Bodofor® 26650 LiFe PO4 12 .8V 4000mA 02 | ||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

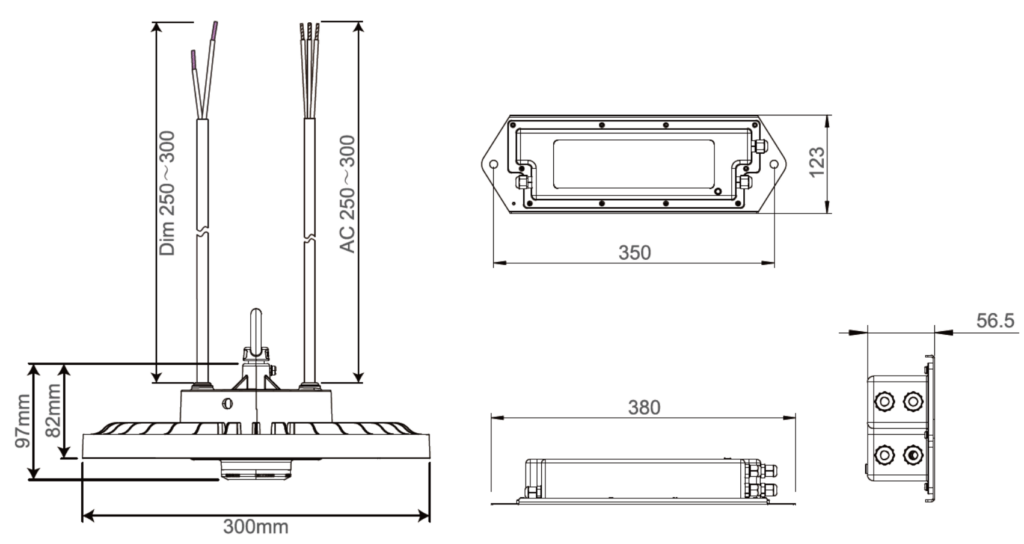

Dimensions(Unit:mm)
