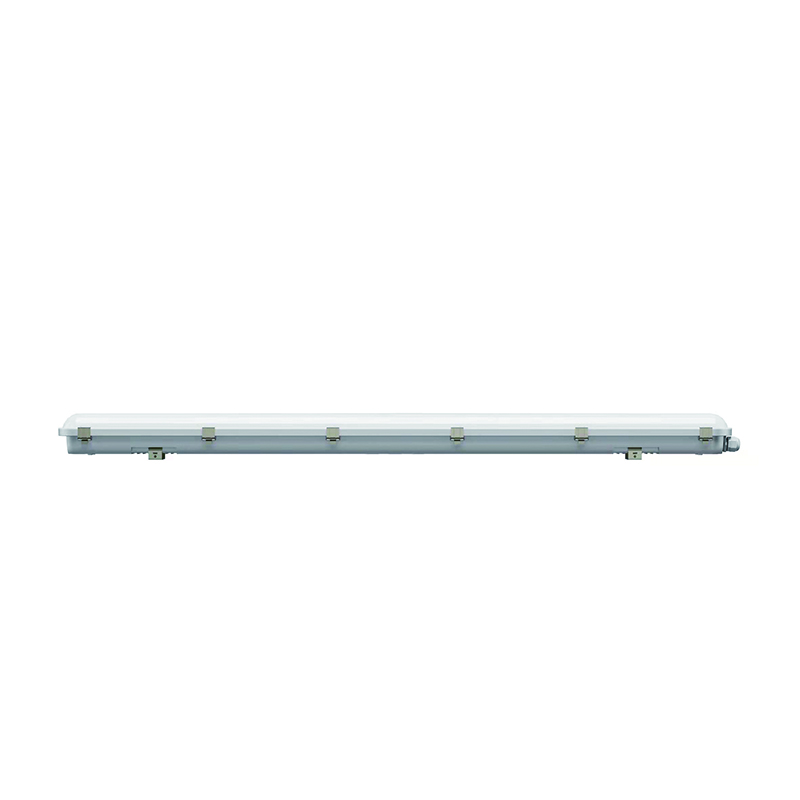

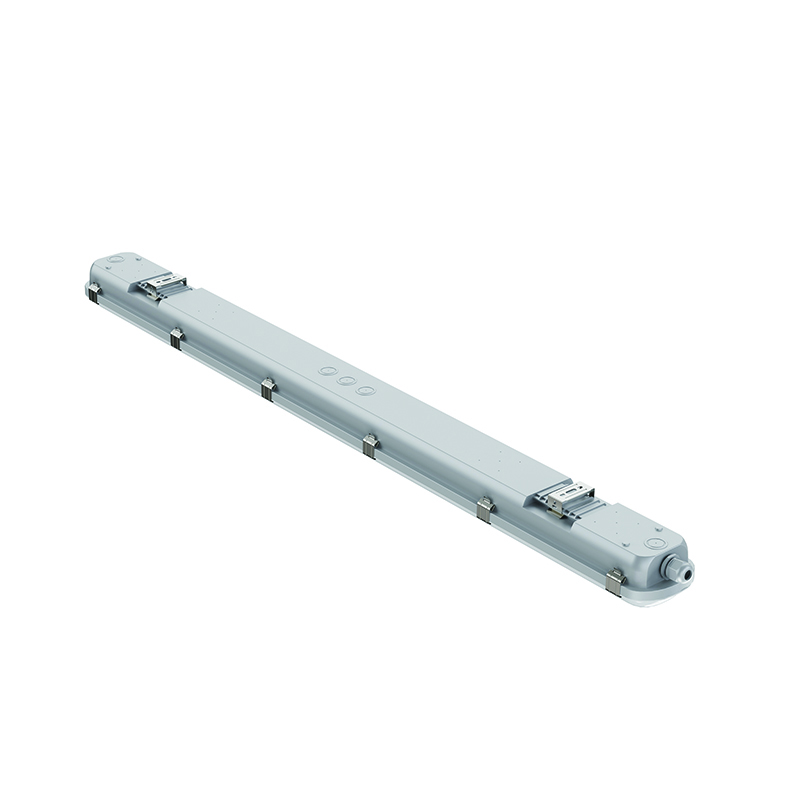

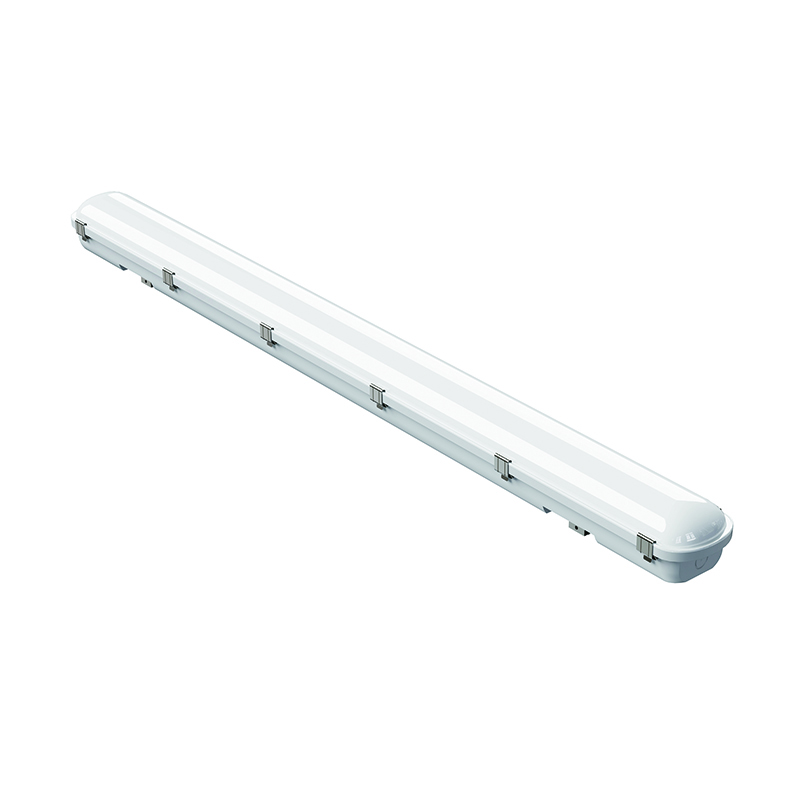

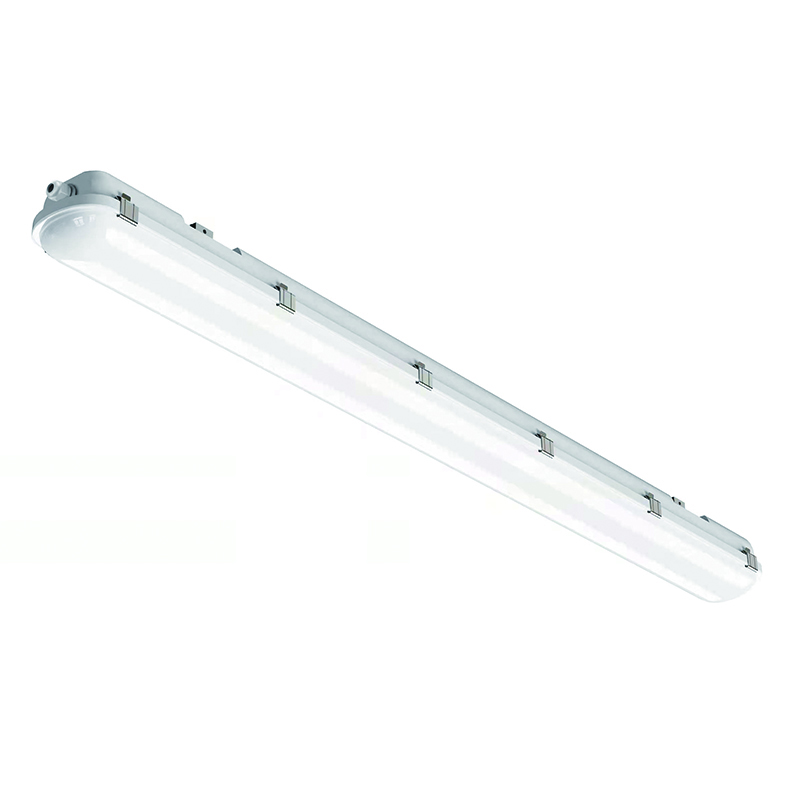

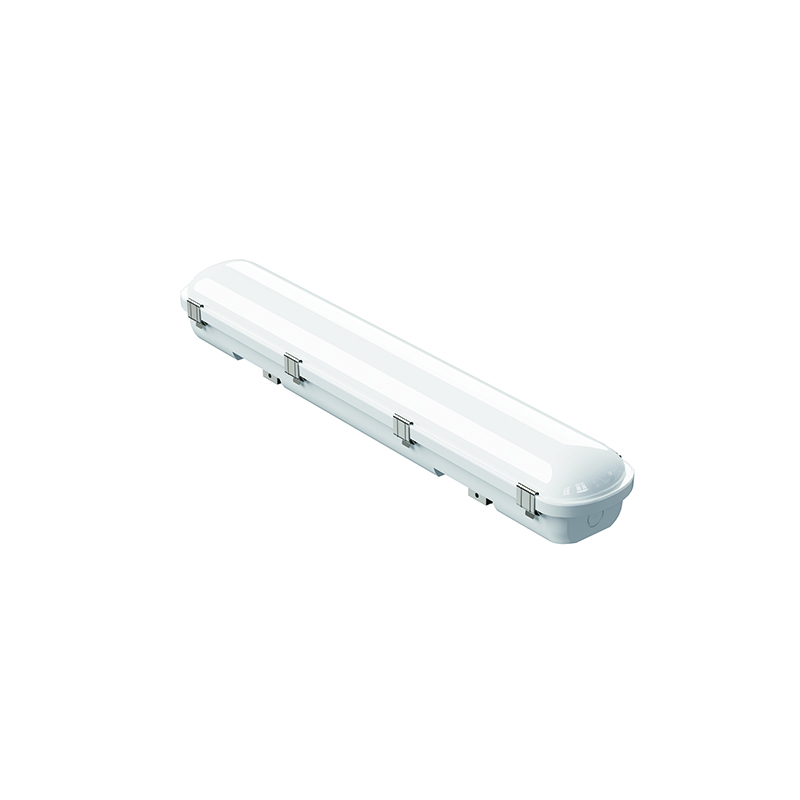

Trilamp A11 LED emergency tri-proof light combines cutting-edge design with reliable performance, making it an ideal lighting solution for demanding environments.
Built to withstand harsh conditions, the A4 features IP65 and IK10 ratings, ensuring protection against water, dust, and impact. It is available in three sizes—600mm, 1200mm, and 1500mm—with power options of 20W, 40W, and 60W. Delivering a high light efficacy of up to 140 lm/W, it is crafted from fireproof PC material for added safety and durability.
The A4 is equipped with a 3W emergency power mode, providing 120 minutes or 180 minutes of reliable illumination during emergencies.
Powered by an advanced Battery Management System (BMS), it utilizes high-quality Lithium Iron Phosphate (LiFePO4) batteries for superior performance and offers both manual and automatic testing options.
Its integrated driver design combines the LED driver and emergency converter into a single unit, utilizing Bridgelux’s innovative 2-in-1 emergency driver. This groundbreaking technology significantly reduces costs while delivering exceptional reliability, setting a new industry standard for emergency tri-proof lighting.
The A4 series includes two versatile models:
- A11EL: Features a built-in emergency light source.
- A11EM: Equipped with an external emergency light source and a high-quality optical lens developed in-house, meeting the D63/D80 lighting level standards required by Australia’s AUS/NZS AS2293.3.
These high-reliability emergency tri-proof lights are designed to address diverse market demands and installation needs while offering significant cost savings for end-users.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | A11 -2FT20-MMK-EL | A11 -4FT40-MMK-EL | A11 -5FT60-MMK-EL |
| Description | IP65&lK10 industrial 2-in-1 Integrated Robust LED Emergency Triproof Light | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage& Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | Push-Fit Tool Free Termination, Loop in & Loop out Design | |||
| Driver | Bridgelux Integrated 2-in-1 LED driver & Emergency converter | |||
| Output | LED Source | Bridgelux LED Chip SMD2835R | ||
| Color Temperature | MM =27-65 stands for 2700-6500K | |||
| Lighting Efficiency | 140lm/W | |||
| Power Consumption | 20W | 40W | 60W | |
| Controls | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | ||
| Multimode | Standard Emergency , Microwave Sensor/ Dimming/DALI-2/Low Voltage | |||
| Emergency | Charger | 24hrs charging time with the latest temperature controlled BMS | ||
| Emergency Output | 2W (300lm±10%) | 2.5W (350lm±10%) | 3W (450lm±10%) | |
| Duration Time | 3Hours | 3Hours | 3Hours | |
| Testing Facility | Self test | |||
| Indicators | System status indication through Yellow&Green indicator | |||
| Physical | Construction | Diffuser – PC , Housing – PC or PC+ABS , Relector – CRCA | ||
| Mounting | Surface mounted – ceiling/wall/suspend | |||
| Colour | Grey | |||
| Dimension L x W x H ( mm) | 600x110x82 | 1200x110x82 | 1500x110x82 | |
| IP/IK Rating | IP65 & IK10 | |||
| Weight | 1 .0kg | 2 .0kg | 2 . 6kg | |
| Warranty | 5 years on product, 4 years on battery | |||
| Environment | Operating Temperature | -0° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/CB, EN/IEC55015, 61547,61000-3-2, 61000-3-3, 60598-2-1 | ||
| AS/NZS 2293 Classification | Class D80/D100/D120 as options | |||
| Electric class ( 1 ,2 ,3) | 1 | |||
| Accessories | Microwave Dimming Sensor | P/N: MC004-S02 with MR003 | ||
| Replaceable Battery Bodo for® LiFe PO4 NTC |
P/ N : 21 16-02 | LiFe PO4 18650 6 .4V 1600mA |
P/ N : 2120-02 | LiFe PO4 18650 6 .4V 2000mA |
||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

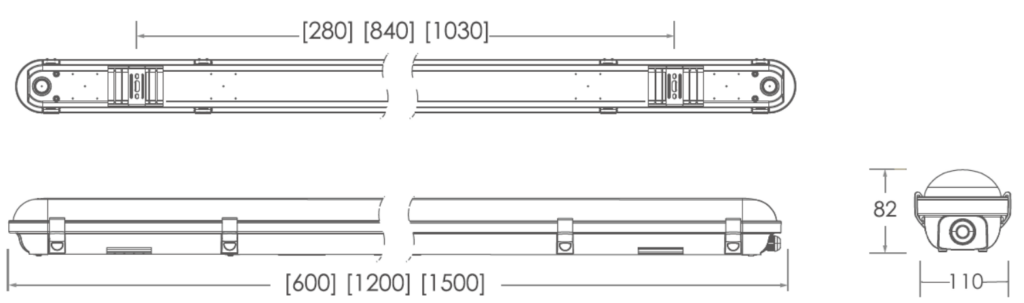

Dimensions(Unit:mm)
