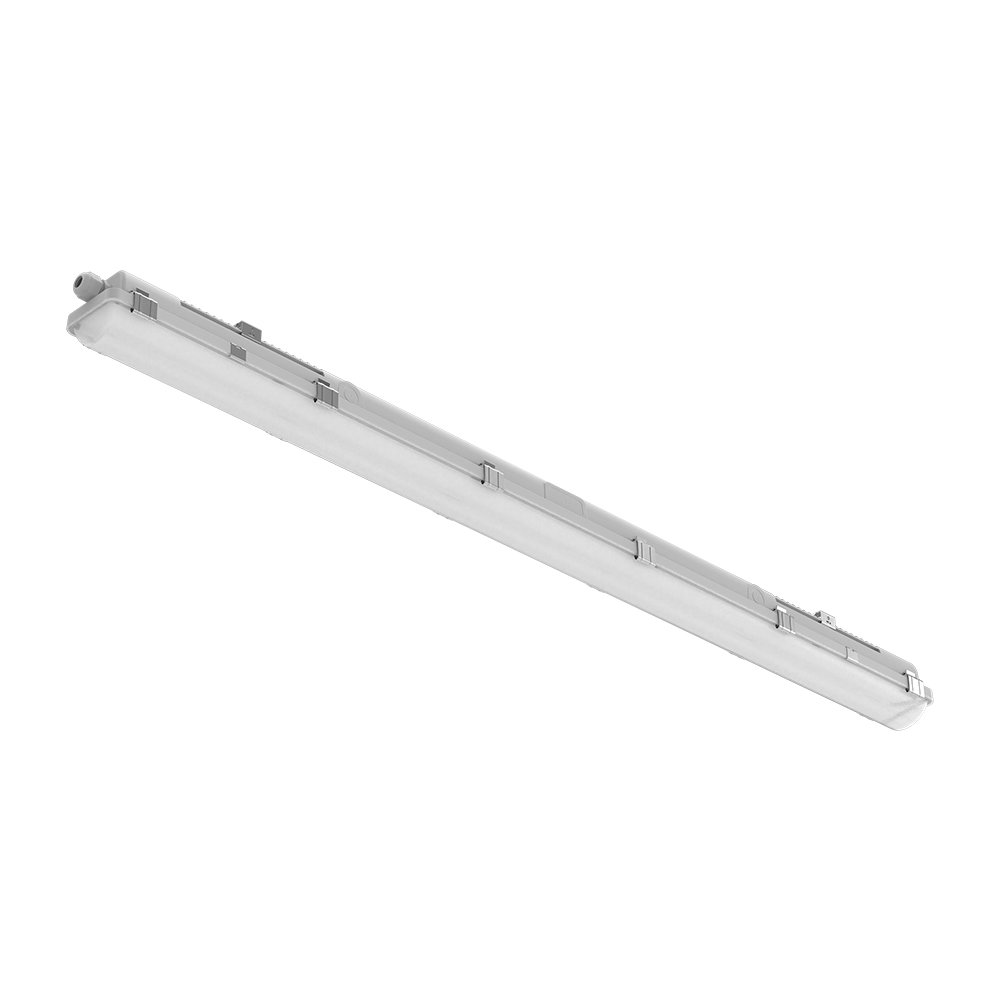

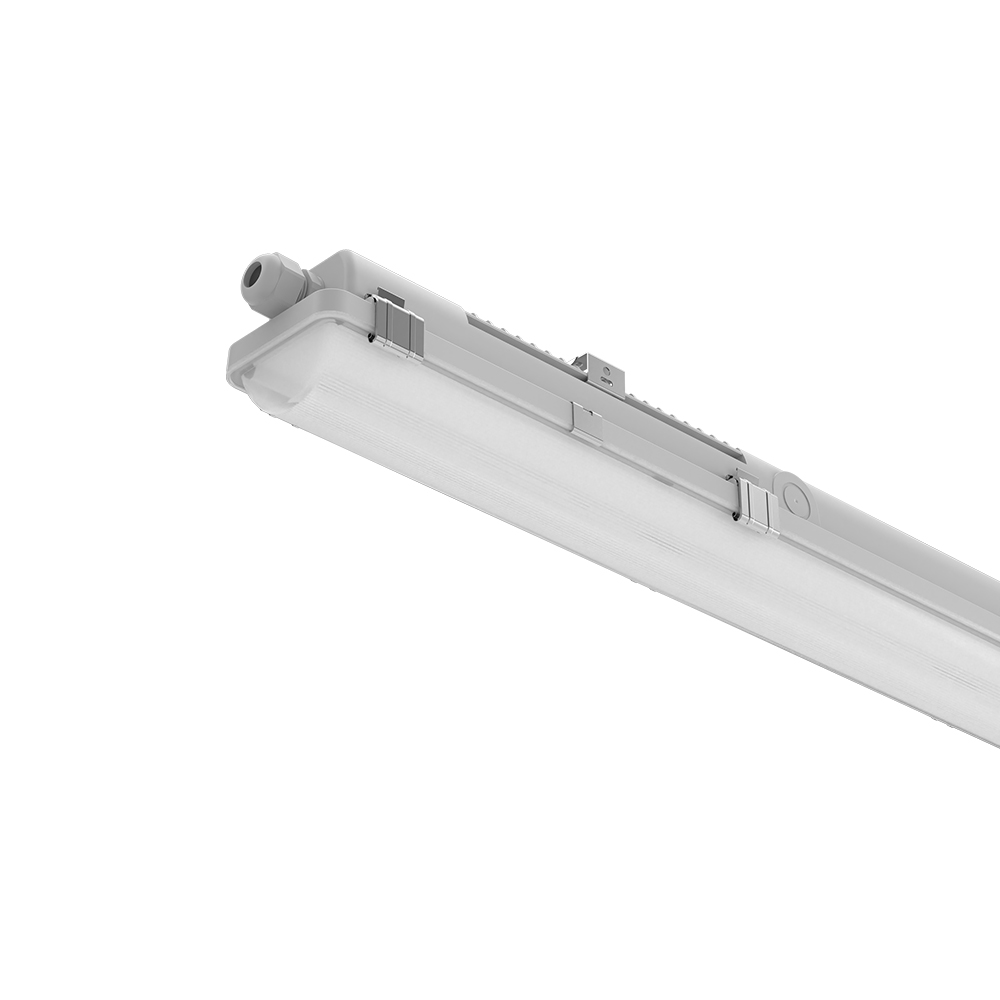

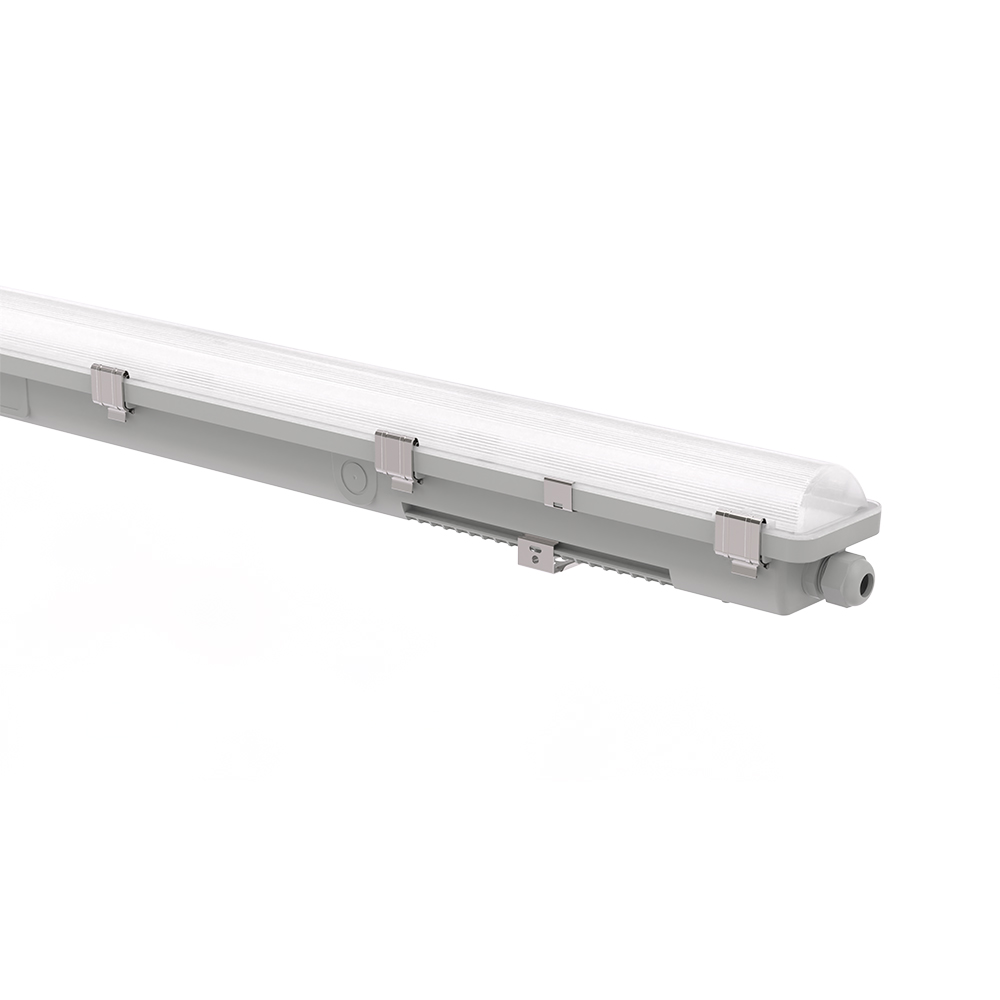

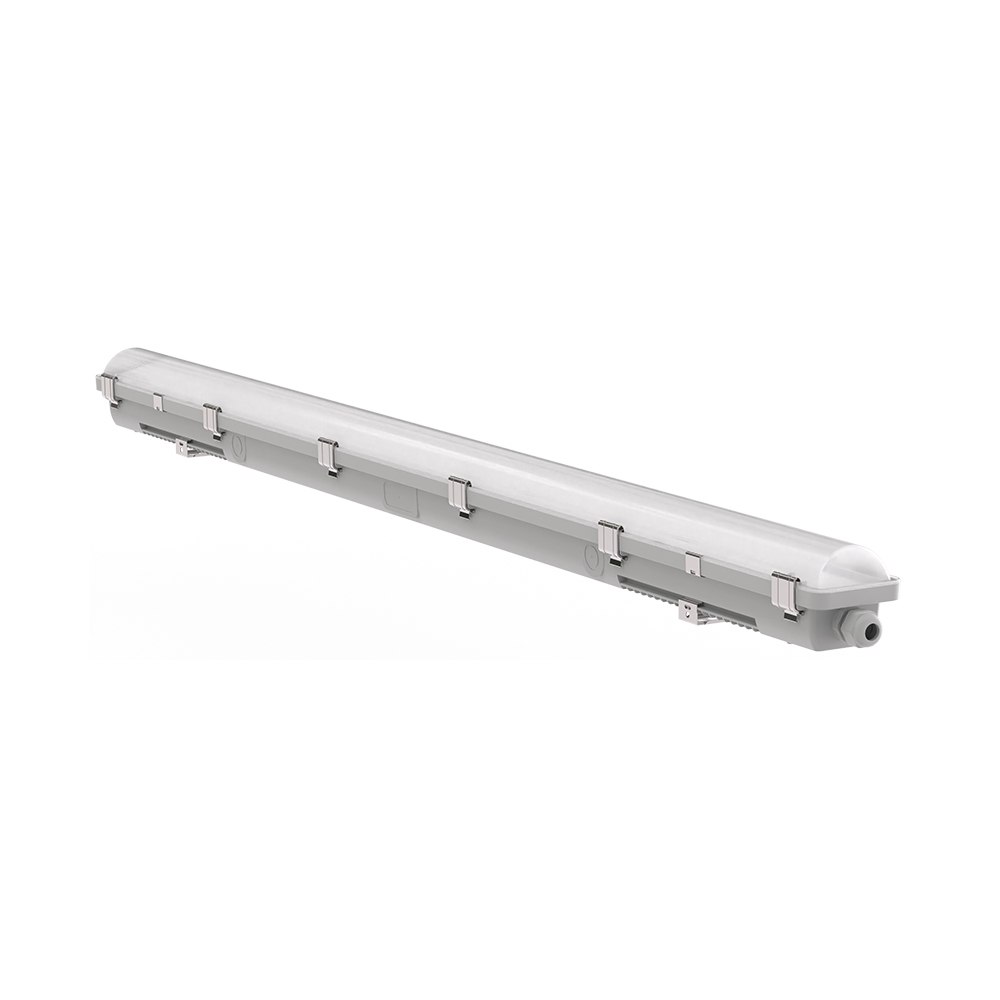

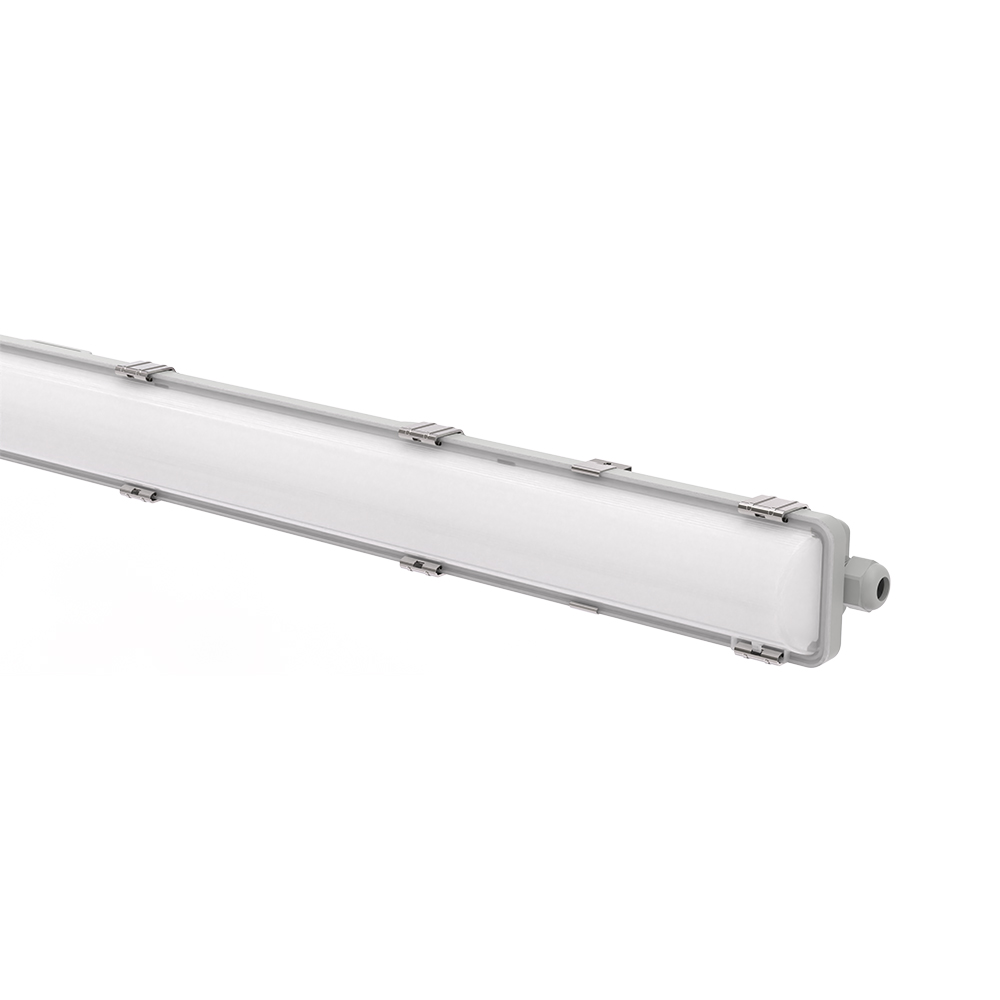

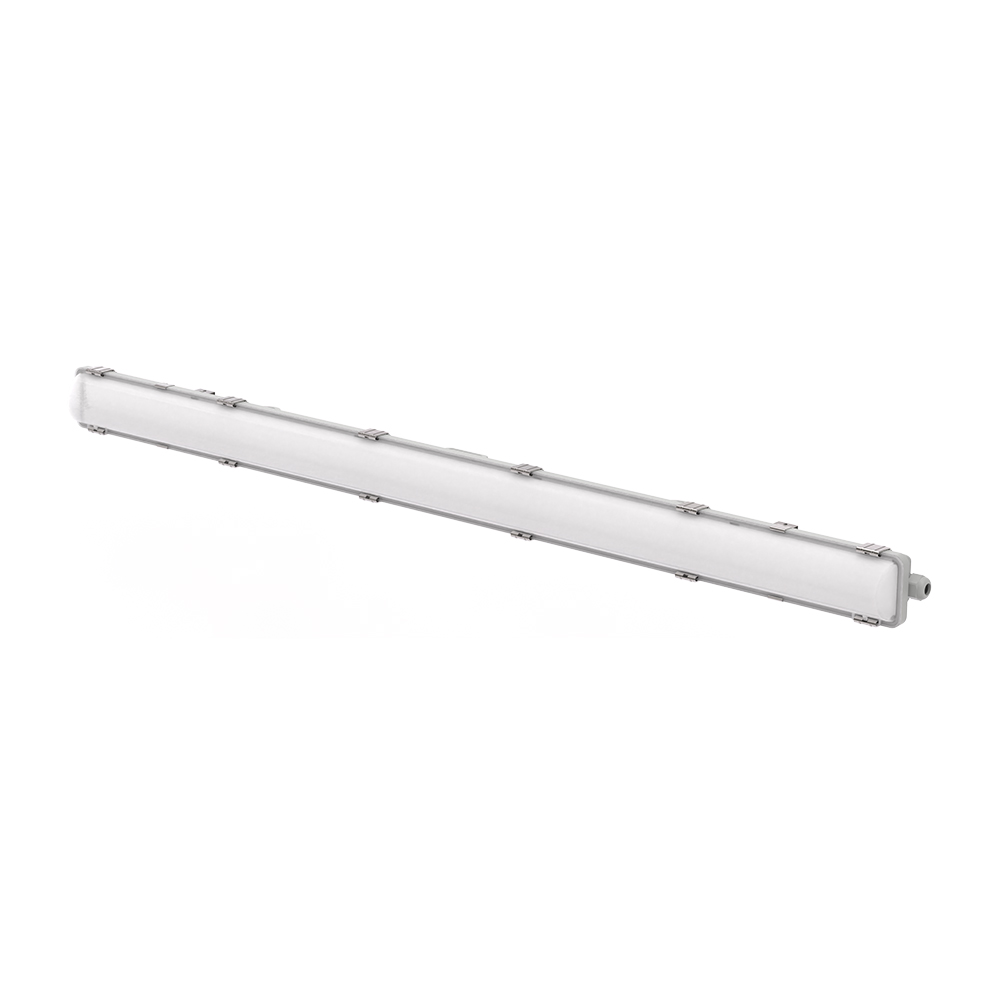

Ideal for cost-sensitive projects requiring the same premium quality in a more compact profile, which is the reason why Trilamp A1 here for you.
The Trilamp A1 delivers the same cutting-edge performance but in a slimmer, streamlined design.
Perfect for spaces where efficiency meets modern aesthetics, this robust lighting solution thrives in the most demanding environments.
With a 3W emergency power mode, Trilamp A11 provides 120 minutes or 180 minutes of dependable illumination during emergencies.
The light incorporates an advanced Battery Management System (BMS) powered by high-quality Lithium Iron Phosphate (LiFePO4) batteries, offering manual and automatic testing capabilities to ensure optimal performance and reliability.
Its integrated driver design combines the LED driver and emergency converter into a single unit, utilizing Bridgelux’s innovative 2-in-1 emergency driver.
This groundbreaking approach reduces production costs while maintaining exceptional functionality, setting a new benchmark for emergency tri-proof lighting.
The A1 series is available in two configurations to meet diverse needs:
A1EL: Features a built-in emergency light source.
A1EM: Includes an external emergency light source, paired with our proprietary high-quality optical lens, designed to comply with D63/D80 lighting level standards as per Australia’s AUS/NZS AS2293.3.
These versatile and high-reliability emergency tri-proof lights cater to various market demands and installation requirements while significantly reducing costs for end-users..
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | A1-2FT18-MMK-EL | A1-4FT36-MMK-EL | A1-5FT54-MMK-EL |
| Description | Driver & Emergency Converter 2-in-1 LED Triproof Light | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage& Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | Push-Fit Tool Free Termination, Loop in & Loop out Design | |||
| Driver | Bridgelux Integrated 2-in-1 LED driver & Emergency converter | |||
| Output | LED Source | Bridgelux LED Chip SMD2835R | ||
| Color Temperature | MM =27-65 stands for 2700-6500K | |||
| Lighting Efficiency | 125lm/W | |||
| Power Consumption | 18W | 36W | 54W | |
| Controls | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | ||
| Multimode | Standard Emergency , Microwave Sensor/ Dimming/DALI-2/Low Voltage | |||
| Emergency | Charger | 24hrs charging time with the latest temperature controlled BMS | ||
| Emergency Output | 2W (300lm±10%) | 2.5W (350lm±10%) | 3W (450lm±10%) | |
| Duration Time | 3Hours | 3Hours | 3Hours | |
| Testing Facility | Self test | |||
| Indicators | System status indication through Yellow&Green indicator | |||
| Physical | Construction | Diffuser – PC , Housing – PC or PC+ABS , Relector – CRCA | ||
| Mounting | Surface mounted – ceiling/wall/suspend | |||
| Colour | Grey | |||
| Dimension L x W x H ( mm) | 600x80x72 | 1200x80x72 | 1500x80x72 | |
| IP/IK Rating | IP65 & IK10 | |||
| Weight | 1 .2kg | 1 .9kg | 2 .4kg | |
| Warranty | 5 years on product, 4 years on battery | |||
| Environment | Operating Temperature | -0° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/CB, EN/IEC55015, 61547,61000-3-2, 61000-3-3, 60598-2-1 | ||
| AS/NZS 2293 Classification | Class D80/D100/D120 as options | |||
| Electric class ( 1 ,2 ,3) | 1 | |||
| Accessories | Microwave Dimming Sensor | P/N: MC004-S02 with MR003 | ||
| Replaceable Battery Bodo for® LiFe PO4 NTC |
P/ N : 2116-02 | LiFe PO4 18650 6 .4V 1600mA |
P/ N : 2120-02 | LiFe PO4 18650 6 .4V 2000mA |
||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.
Dimensions(Unit:mm)
