IP66 & IK10 Robustness: A3 is an ip66 & IK10-rated LED batten, offering exceptional durability and impact resistance.
High Efficiency: With an impressive efficiency output of 140lm/W,160lm/W,185lm/W, it provides superior illumination while conserving energy.
Wide Temperature Range: A3 can withstand high environmental temperatures of up to 55ºC, ensuring reliable performance in various conditions.
Patented Connector: It features a patented seamless connector design, eliminating dark areas in its illumination.

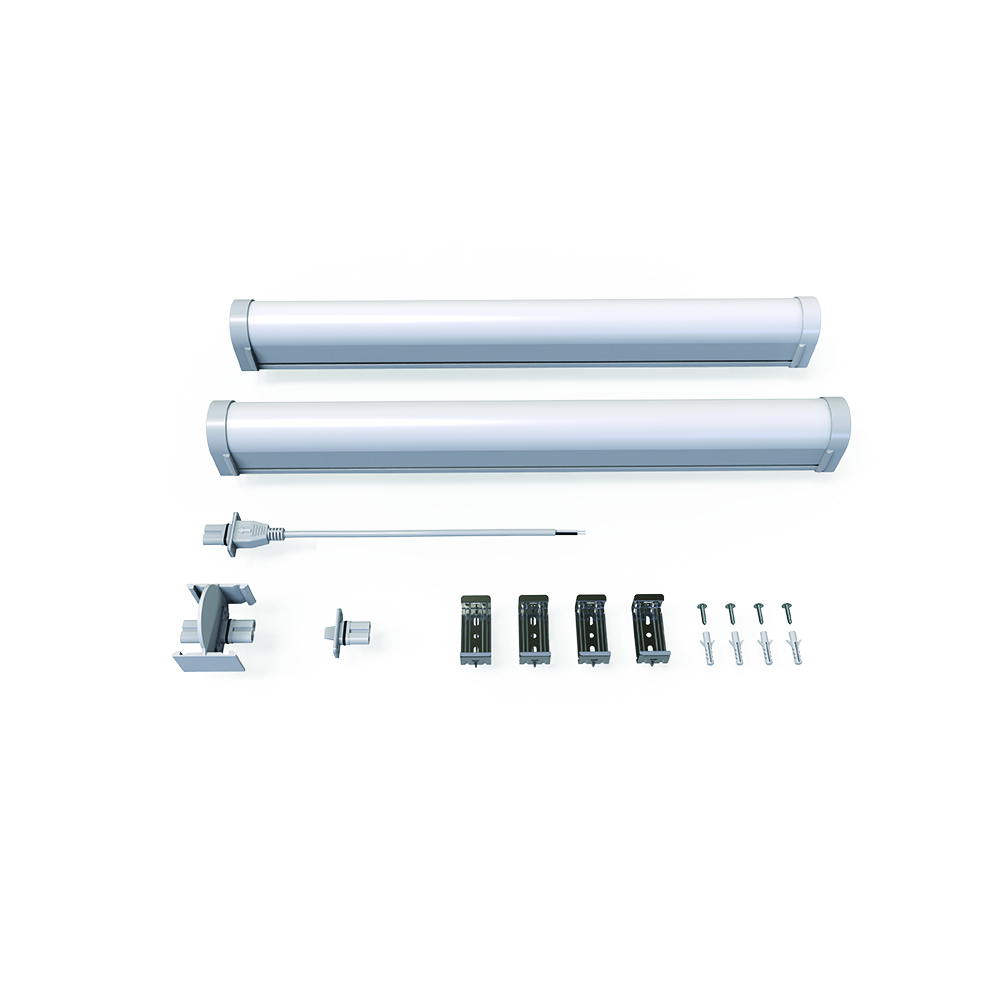

Construction: A3 batten includes surface-mounted LEDs on a metal-core PCB, a UV-stable polycarbonate body, besa fixings, a piano-key terminal block for easy loop-in, loop-out connections, and comes equipped with an ENEC approved, flicker-free driver.

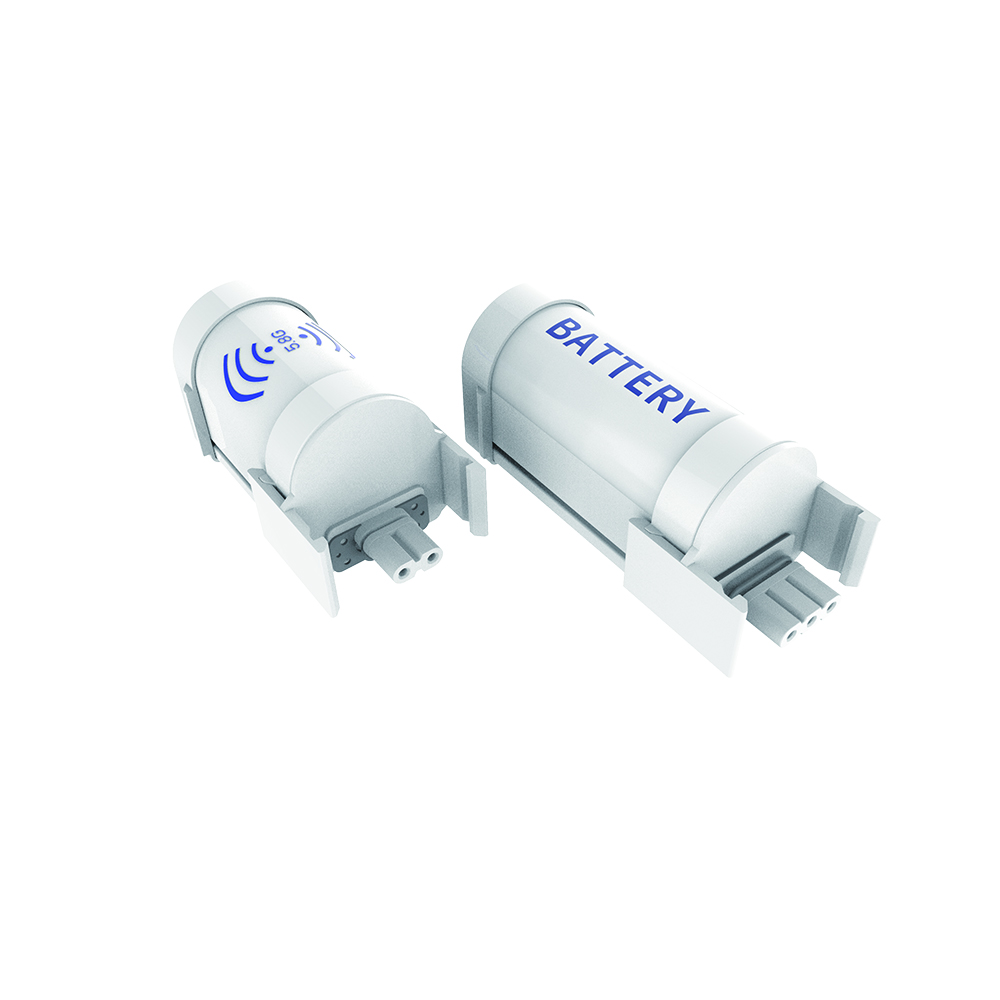

Versatile Options: A3 is available in various sizes and wattages ranging from 600mm to 2400mm. Additionally, you can choose from standard versions, emergency version with LiFePo4 batteries, and options with DALI, 1-10V dimming, integral microwave sensors, or batten mount PIR sensors to suit your specific requirements.

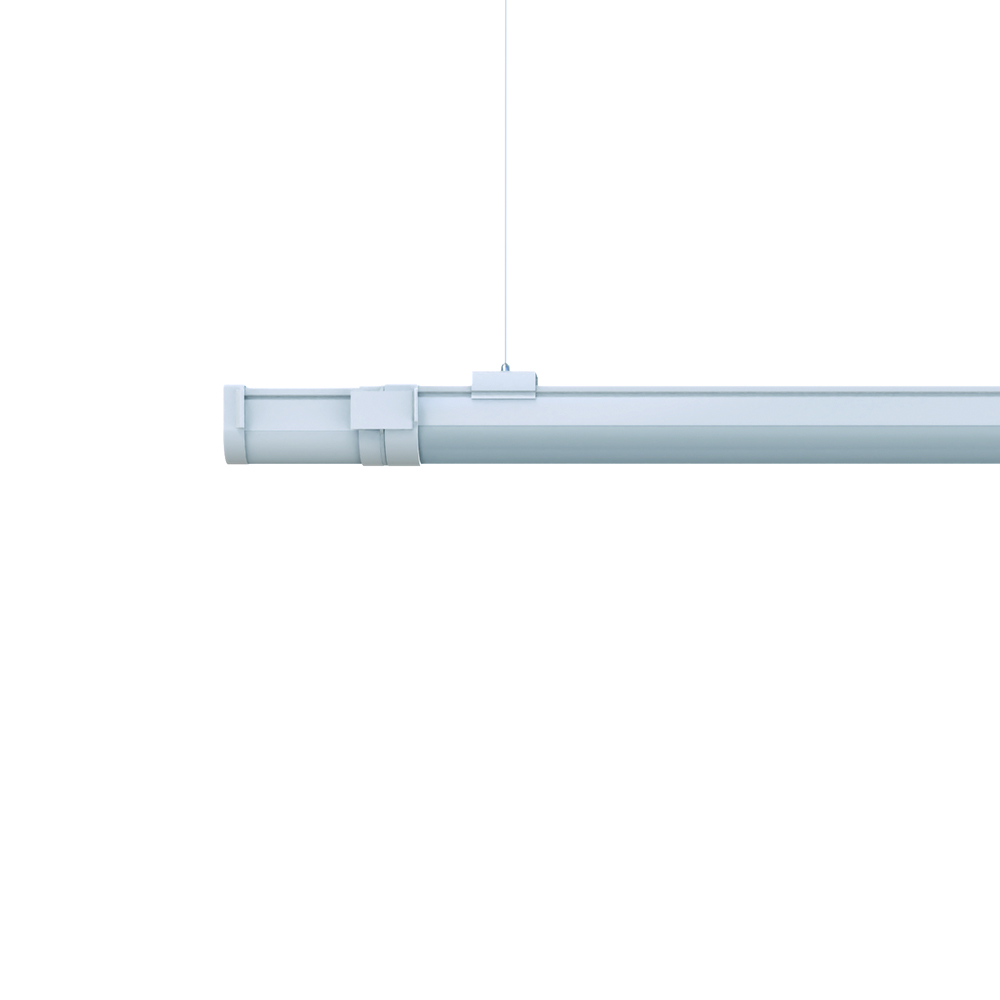

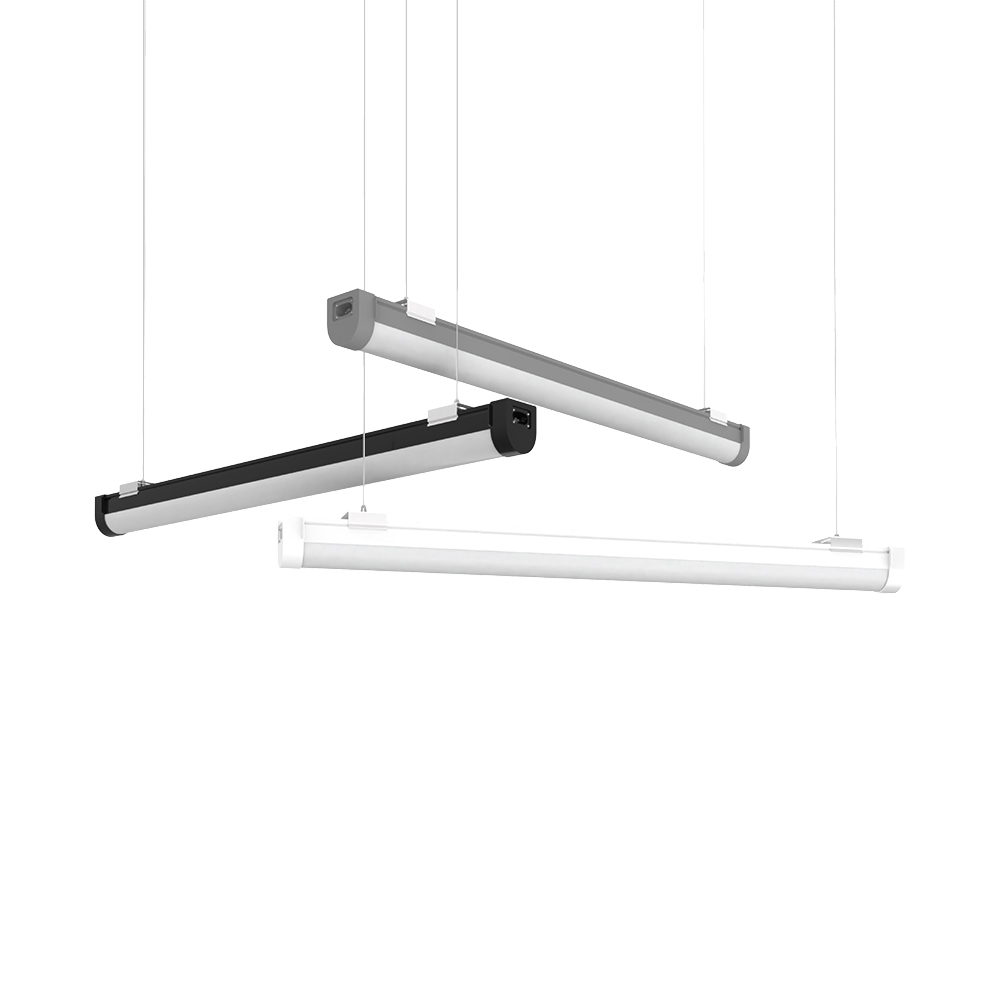

Expandable Reach: A3 can be connected for up to 50 meters using extra Rear Power Connectors (RPC). It is available in suspended and surface-mounted versions, providing flexibility in installation.
Elevate your lighting solution to withstand extreme temperatures with the Trilamp A3 LED Batten from our Low Temperature Emergency Lighting Range. Trust in its robustness, efficiency, and adaptability for your unique lighting needs.
Relevant standard
IEC 60598-1: 2014+A1:2017
IEC 60598-2-22: 2014+A1:2017
AS/NZS60598.1: 2017+A1:2017+A2:2020
AS 60598.2.22: 2019
AS/NZS2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | A3-2FT18-MMK-EL | A3-4FT36-MMK-EL | A3-5FT54-MMK-EL |
| Description | IP66 Waterproof Linkable LED Emergency Batten | |||
| Working | Mode of Operation | Maintained | ||
| Input | Voltage& Frequency | 220-240Vac, 50/60Hz | ||
| Wiring Connection | Input Power Cable, Seamless Connector | |||
| Driver | Bridgelux Integrated 2-in-1 LED driver & Emergency converter | |||
| Output | LED Source | Bridgelux High lumens SMD2835 | ||
| Color Temperature | MM =27-65 stands for 2700-6500K | |||
| Lighting Efficiency | 140lm/W | |||
| Power Consumption | 18W | 36W | 54W | |
| Controls | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | ||
| Multimode | Standard / Emergency / 5 .8G Microwave Sensor / Dimming/DALI-2 | |||
| Emergency | Charger | 24hrs intelligent 3-stage charger with battery management system | ||
| Emergency Output | 2W (300lm±10%) | 3W (450lm±10%) | 4W (600lm±10%) | |
| Duration Time | 3 hours | 3hours | 1 .5hours | |
| Testing Facility | Self test | |||
| Indicators | System status indication through Yellow&Green indicator | |||
| Physical | Construction | Diffuser – PC , Housing – PC , Relector – AL6063 | ||
| Mounting | Surface mounted – ceiling/wall/suspend | |||
| Colour | Black/White/Grey | |||
| Dimension L x W x H ( mm) | 700x68x68 | 1300x68x68 | 1600x68x68 | |
| IP Rating | IP66 & IK08 | |||
| Weight | 0 . 7kg | 1 .24kg | 1 .5kg | |
| Warranty | 5 years on product, 4 years on battery | |||
| Environment | Operating Temperature | -20° to 50°C | ||
| Relative Humidity | -10 to 95% | |||
| Compliance | Standards | CE/UKCA/CB, EN/IEC55015, 61547,61000-3-2, 61000-3-3, 60598-2-1 | ||
| AS/NZS 2293 Classification | Class D80/D100/D120 as options | |||
| Accessories | Electric class ( 1 ,2 ,3) | 1 | ||

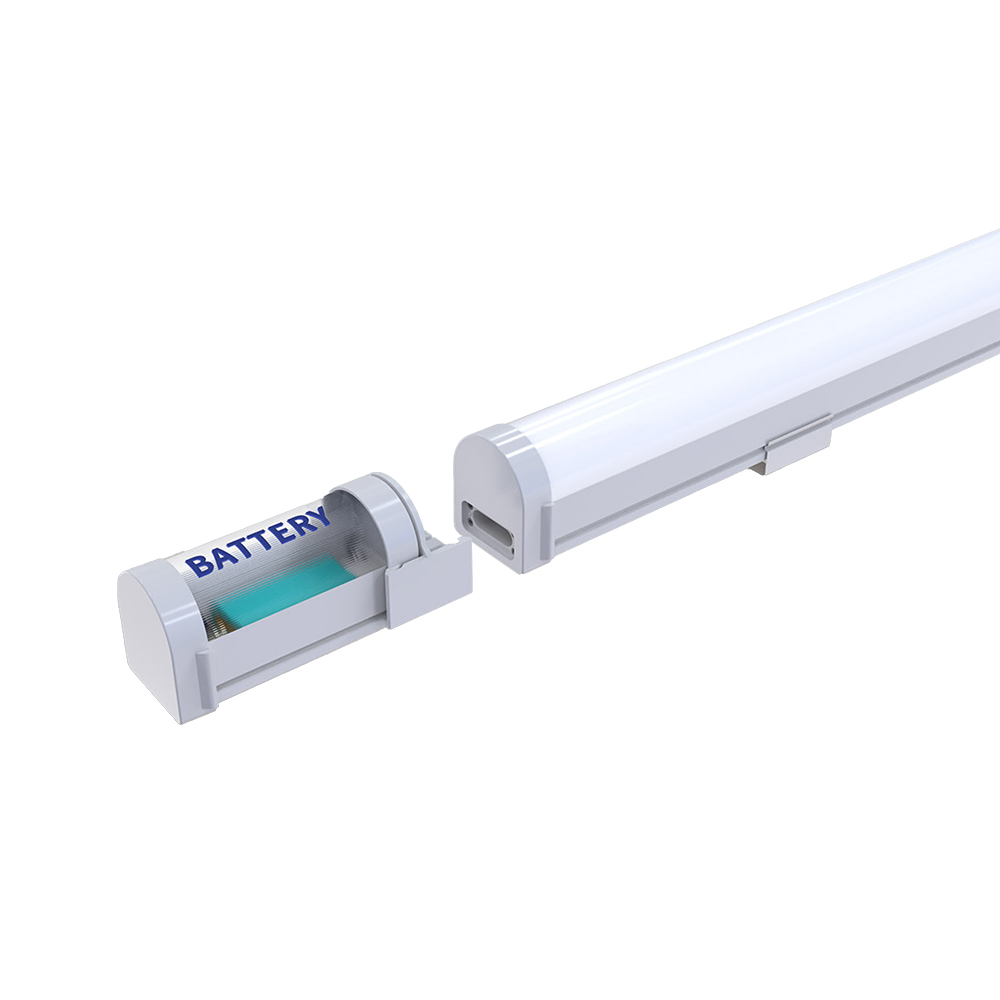

| Replaceable Battery | P/ N : 21 16-02 Bodofor® 18650 LiFe PO4 6 .4V 1600mA 02 | |||
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

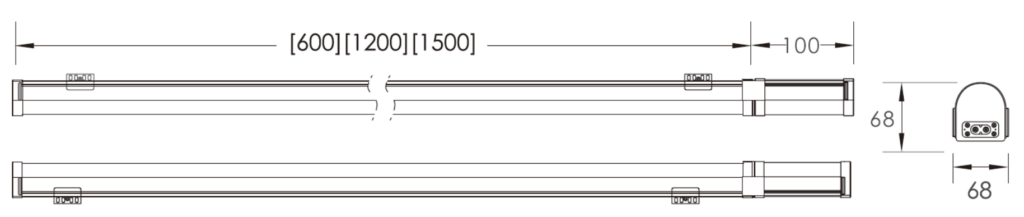

Dimensions(Unit:mm)
